Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'High-Speed Layout Guidelines' application note (SLVA466) for optimal performance.
To ensure signal integrity, use controlled impedance traces, minimize trace lengths, and use termination resistors as recommended in the datasheet. Also, consider using simulation tools like TI's IBIS model or third-party tools like HyperLynx or ADS to simulate and optimize your design.
The maximum cable length supported by the DS90CR215MTDX/NOPB depends on the specific application and the type of cable used. As a general guideline, TI recommends keeping cable lengths under 10 meters for optimal performance. However, longer cable lengths may be possible with proper signal conditioning and equalization.
To troubleshoot issues with the DS90CR215MTDX/NOPB, start by checking the power supply and clocking scheme. Verify that the device is properly configured and that the input signals meet the recommended specifications. Use oscilloscopes and logic analyzers to debug the signals and identify any issues. TI also provides a 'Debugging Guide' application note (SLVA474) that provides more detailed troubleshooting steps.
Yes, the DS90CR215MTDX/NOPB can be used in a multi-lane configuration. However, it's essential to follow the guidelines in the datasheet and application notes for proper lane alignment, clocking, and signal routing to ensure optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90CR215MTDX/NOPB Overview

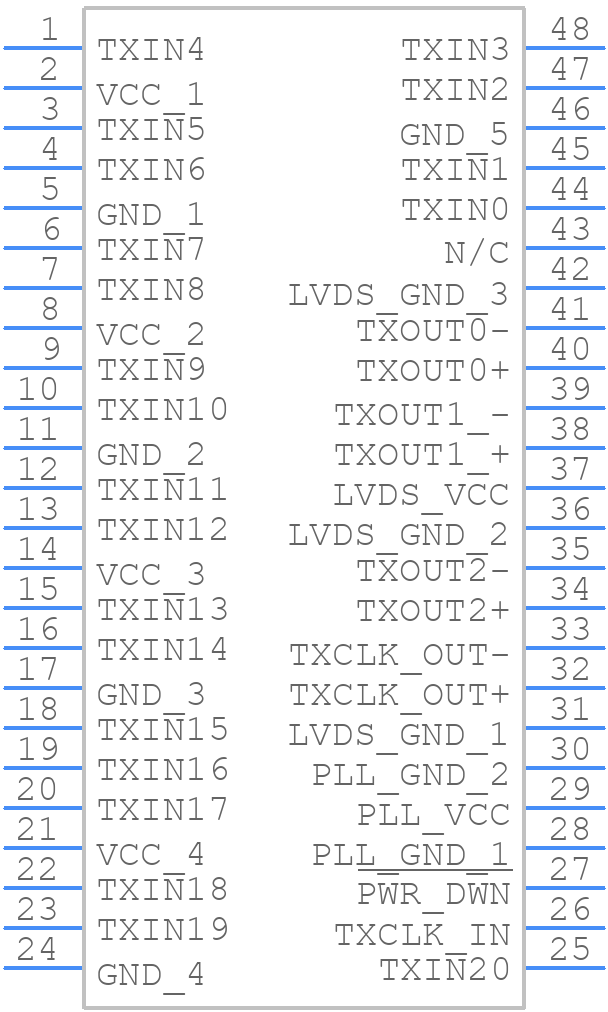

Use the download button to access the DS90CR215MTDX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90C,
or try a keyword search, such as Line Driver or Receivers
