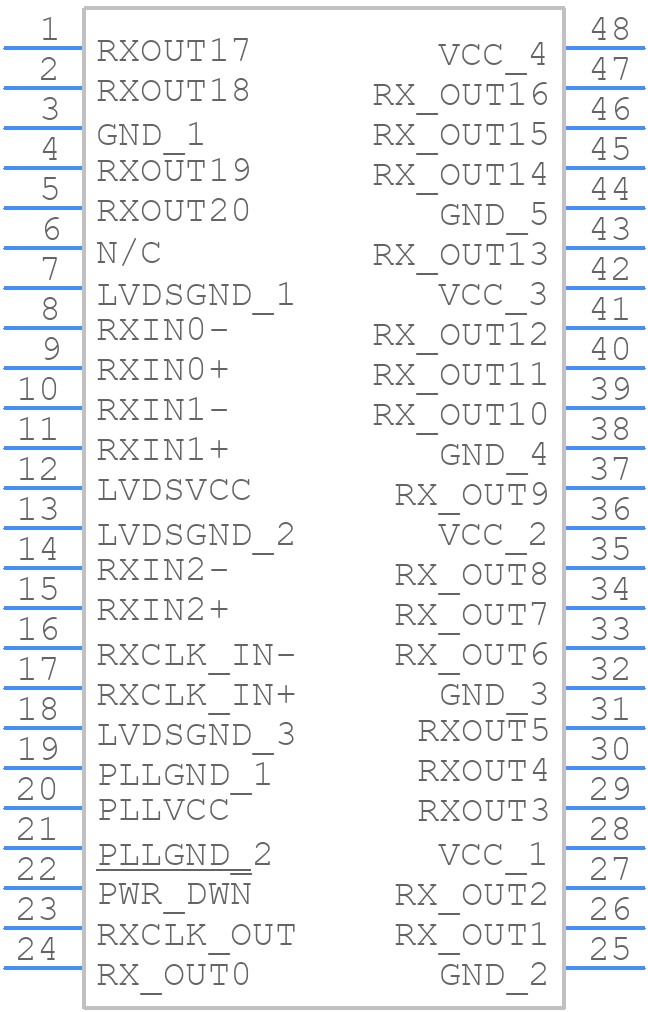

DS90CR216MTDX - Texas Instruments

DS90CR216MTDX Details

• Manufacturer Part Number:

  DS90CR216MTDX

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TSSOP

• Package Description:

  LOW PROFILE, TSSOP-48

• Pin Count:

  48

• ECCN Code:

  5A991.B.1

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  1998-03-01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Differential Output:

  NO

• Input Characteristics:

  DIFFERENTIAL SCHMITT TRIGGER

• Interface IC Type:

  LINE RECEIVER

• Interface Standard:

  EIA-644; TIA-644

• JESD-30 Code:

  R-PDSO-G48

• JESD-609 Code:

  e0

• Length:

  12.5 mm

• Moisture Sensitivity Level:

  2

• Number of Functions:

  3

• Number of Terminals:

  48

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Out Swing-Min:

  2.7 V

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP48,.3,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  235

• Qualification Status:

  Not Qualified

• Receiver Number of Bits:

  3

• Seated Height-Max:

  1.1 mm

• Supply Current-Max:

  105 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Supply Voltage1-Max:

  3.6 V

• Supply Voltage1-Min:

  3 V

• Supply Voltage1-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  20

• Width:

  6.1 mm
