Texas Instruments provides a recommended PCB layout guide in their application note SLUA433, which includes guidelines for signal routing, power supply decoupling, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To ensure reliable operation in high-temperature environments, it is essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range of -40°C to 105°C.
When selecting input and output termination resistors, consider the signal frequency, transmission line impedance, and the device's output impedance. A general rule of thumb is to use a 50-ohm termination resistor for high-speed signals, and a 1-kohm to 10-kohm termination resistor for low-speed signals. Consult the datasheet and application notes for specific guidance.
To troubleshoot issues with the DS90CR217MTDX/NOPB, use a combination of tools such as oscilloscopes, logic analyzers, and signal generators to analyze the signal quality and integrity. Check for proper signal termination, power supply noise, and electromagnetic interference (EMI). Consult the datasheet, application notes, and Texas Instruments' support resources for guidance on troubleshooting specific issues.
When using the DS90CR217MTDX/NOPB in a system with multiple voltage domains, ensure that the device's power supply voltage is compatible with the system's voltage domains. Use level shifters or voltage translators as needed to ensure signal integrity and prevent damage to the device. Consult the datasheet and application notes for specific guidance on voltage domain crossing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90CR217MTDX/NOPB Overview

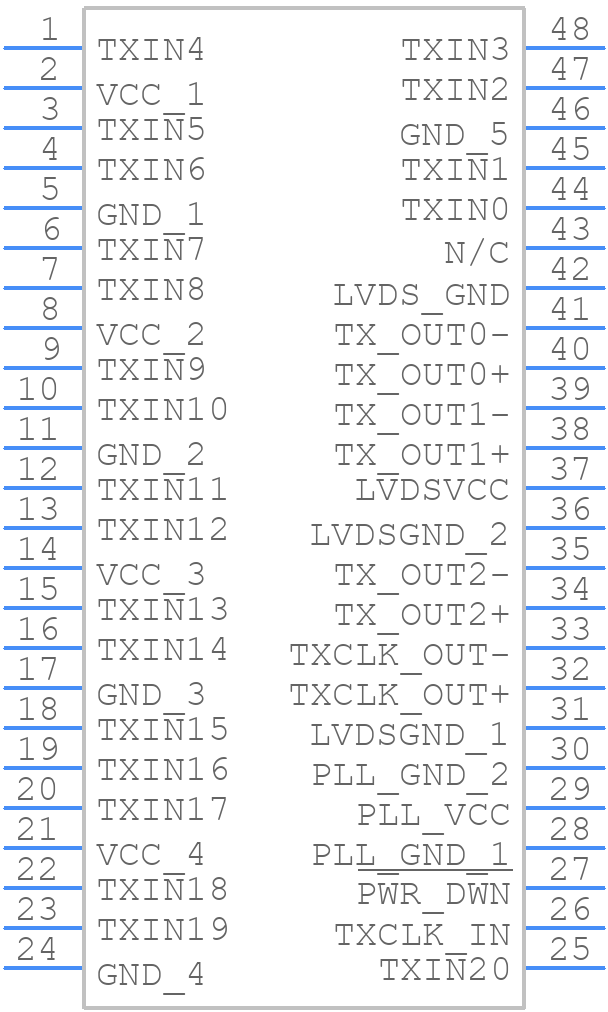

Use the download button to access the DS90CR217MTDX/NOPB schematic symbol, PCB footprint, and 3D model.
