Texas Instruments provides a recommended PCB layout in the DS90CR218A datasheet, which includes guidelines for trace routing, component placement, and thermal management. Additionally, TI offers a PCB layout checklist and a layout guide for FPD-Link III devices.
To ensure signal integrity and minimize EMI, follow the recommended PCB layout guidelines, use differential signaling, and implement proper shielding and grounding techniques. Additionally, use a common-mode filter and a shielded cable to reduce EMI. TI also provides a signal integrity guide for FPD-Link III devices.
The maximum cable length supported by the DS90CR218AMTDX/NOPB depends on the specific application and the type of cable used. However, as a general guideline, TI recommends a maximum cable length of 10 meters for FPD-Link III devices. Longer cable lengths may be possible with the use of repeaters or active cables.
The DS90CR218AMTDX/NOPB can be configured using the I2C interface or through the use of external resistors. TI provides a configuration guide and a register map in the datasheet, as well as a software development kit (SDK) for configuring and evaluating the device.
The power consumption of the DS90CR218AMTDX/NOPB depends on the specific application and the operating conditions. However, according to the datasheet, the typical power consumption is around 350 mW per channel. TI also provides a power consumption calculator tool to help estimate power consumption for specific designs.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90CR218AMTDX/NOPB Overview

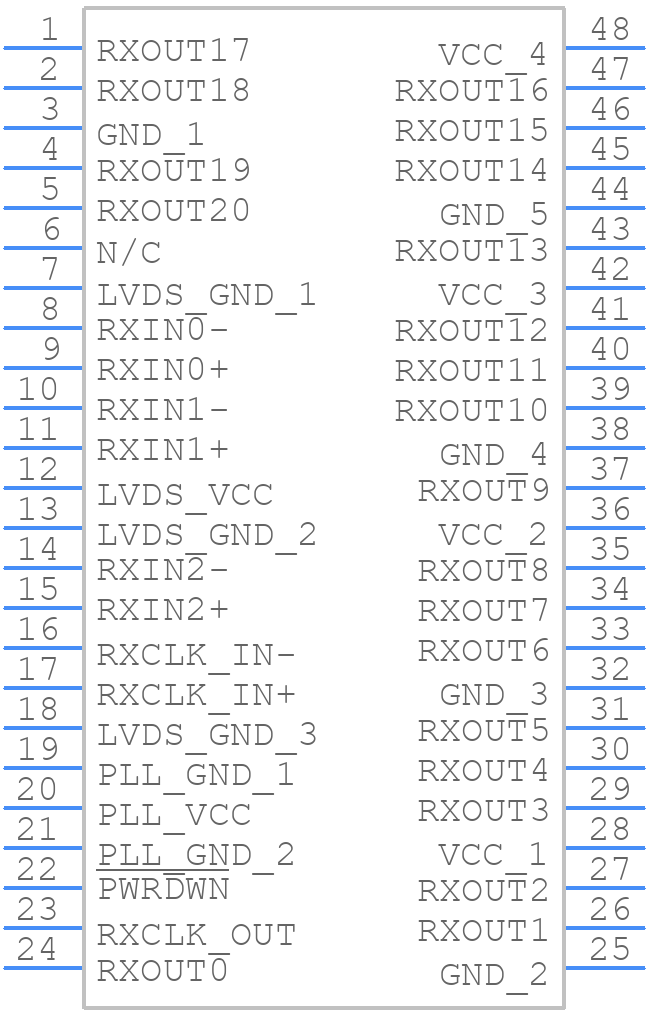

Use the download button to access the DS90CR218AMTDX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90C,
or try a keyword search, such as Line Driver or Receivers
