DS90CR484AVJD - Texas Instruments

DS90CR484AVJD Details

• Manufacturer Part Number:

  DS90CR484AVJD

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

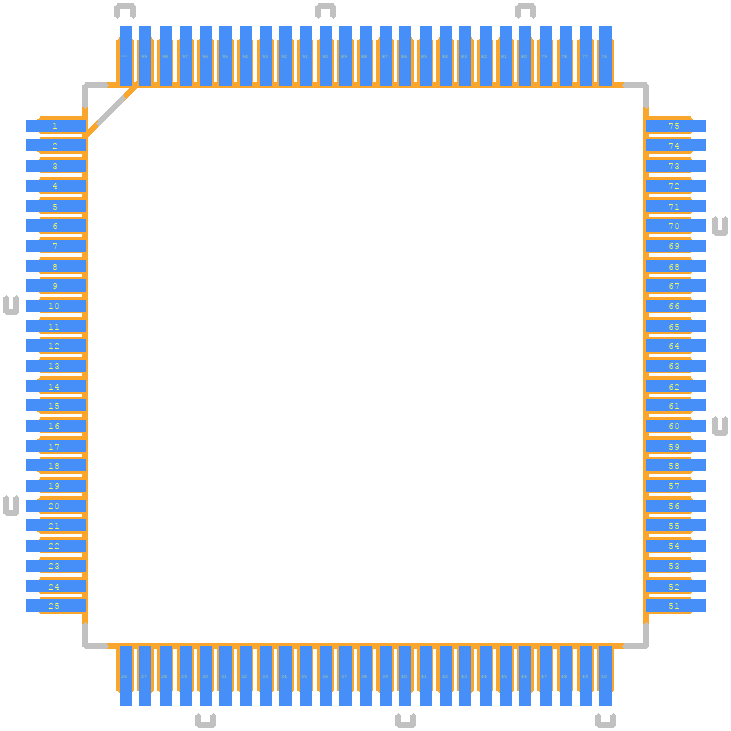

• Part Package Code:

  QFP

• Package Description:

  TQFP-100

• Pin Count:

  100

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• High Level Input Current-Max:

  0.00001 A

• Input Characteristics:

  DIFFERENTIAL

• Interface IC Type:

  LINE RECEIVER

• Interface Standard:

  EIA-644; TIA-644

• JESD-30 Code:

  S-PQFP-G100

• JESD-609 Code:

  e0

• Length:

  14 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  100

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -10 °C

• Out Swing-Min:

  0.25 V

• Output Low Current-Max:

  0.002 A

• Output Polarity:

  COMPLEMENTARY

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TFQFP

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, THIN PROFILE, FINE PITCH

• Qualification Status:

  Not Qualified

• Receiver Number of Bits:

  8

• Seated Height-Max:

  1.2 mm

• Supply Current-Max:

  280 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Supply Voltage1-Max:

  3.6 V

• Supply Voltage1-Min:

  3 V

• Supply Voltage1-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  14 mm
