Texas Instruments provides a recommended PCB layout in the DS90LV018ATMX datasheet, but it's also recommended to follow the guidelines in the 'LVDS Owner's Manual' (SLMA002) and the 'High-Speed Layout Guidelines' (SLYT193) application notes. These resources provide detailed information on how to minimize signal reflections, crosstalk, and electromagnetic interference (EMI).
To ensure signal integrity, it's essential to follow proper PCB layout and routing guidelines, use controlled impedance traces, and add termination resistors as close to the receiver as possible. Additionally, consider using a common-mode filter or a choke to reduce electromagnetic interference (EMI) and improve signal quality.
The maximum cable length supported by the DS90LV018ATMX depends on the specific application and the type of cable used. As a general guideline, Texas Instruments recommends keeping the cable length below 10 meters (33 feet) to ensure reliable data transmission. However, with proper cable selection and termination, longer cable lengths may be possible.
To troubleshoot issues with the DS90LV018ATMX, start by verifying the power supply voltage, clock frequency, and data transmission rate. Use an oscilloscope to check the signal quality and look for signs of signal degradation, such as jitter or ringing. Also, check the PCB layout and routing to ensure that they meet the recommended guidelines.
The DS90LV018ATMX is a standard LVDS transceiver, and it should be compatible with other LVDS transceivers that comply with the TIA/EIA-644 LVDS standard. However, it's essential to verify the specific requirements of the other transceiver and ensure that they match the DS90LV018ATMX's operating conditions, such as voltage, frequency, and data transmission rate.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90LV018ATMX Overview

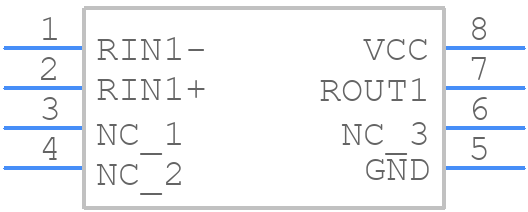

Use the download button to access the DS90LV018ATMX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90L,
or try a keyword search, such as Line Driver or Receivers
