Texas Instruments provides a recommended PCB layout in the DS90LV027A datasheet, which includes guidelines for trace routing, component placement, and thermal management. Additionally, TI offers a PCB layout checklist and a layout guide for FPD-Link III devices, which can be found on their website.
To ensure signal integrity, it's essential to follow proper PCB design and layout practices, such as using controlled impedance traces, minimizing signal reflections, and using termination resistors. Additionally, TI recommends using a common mode filter and a differential mode filter to reduce electromagnetic interference (EMI) and improve signal quality.
The maximum cable length supported by the DS90LV027AHMX/NOPB depends on the specific application and the type of cable used. However, TI recommends a maximum cable length of 10 meters for FPD-Link III devices. Longer cable lengths may be possible with the use of repeaters or active cables.
TI provides a troubleshooting guide for FPD-Link III devices, which includes steps for identifying and resolving common issues such as signal integrity problems, clock domain crossing issues, and power supply noise. Additionally, engineers can use tools such as oscilloscopes and logic analyzers to debug and analyze the signal transmission.
The DS90LV027AHMX/NOPB is a FPD-Link III device, which is compatible with other FPD-Link III devices. However, it's not compatible with FPD-Link II devices, which use a different protocol and have different pinouts. Engineers should ensure that all devices in the system are compatible and use the same protocol to ensure proper communication.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90LV027AHMX/NOPB Overview

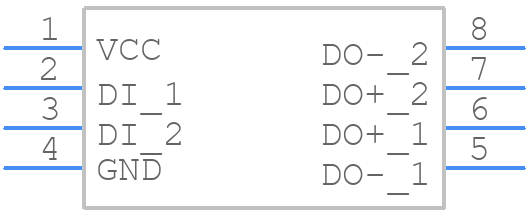

Use the download button to access the DS90LV027AHMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90L,
or try a keyword search, such as Line Driver or Receivers
