The maximum cable length supported by the DS90LV032ATMTCX is approximately 10 meters at 1.5 Gbps and 5 meters at 3 Gbps, assuming a good quality cable with minimal signal attenuation.
The DS90LV032ATMTCX can be configured using the SPI interface. Texas Instruments provides a software development kit (SDK) and a user guide that explains how to configure the device for various applications, including camera interfaces, displays, and industrial control systems.
The power consumption of the DS90LV032ATMTCX depends on the operating frequency and the mode of operation. In typical operating conditions, the device consumes around 250 mW at 1.5 Gbps and 400 mW at 3 Gbps. However, this value can vary depending on the specific application and the system design.
Yes, the DS90LV032ATMTCX is compatible with other FPD-Link III devices from Texas Instruments, including the DS90LV016ATMTCX and the DS90LV048ATMTCX. These devices share a common interface and can be used together to create a scalable and flexible system design.
Texas Instruments provides a range of tools and resources to help troubleshoot issues with the DS90LV032ATMTCX, including a user guide, application notes, and a forum where engineers can ask questions and share experiences. Additionally, the device has built-in diagnostic features, such as error counters and status registers, that can be used to identify and debug issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90LV032ATMTCX Overview

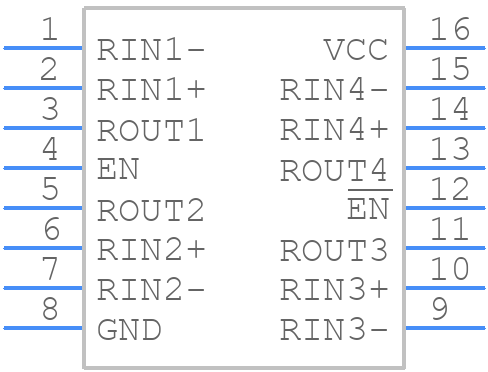

Use the download button to access the DS90LV032ATMTCX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90L,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
