A good PCB layout for the DS90LV047ATMTC involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the connectors. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure signal integrity with the DS90LV047ATMTC, it's essential to maintain a controlled impedance environment, minimize signal reflections, and use proper termination techniques. Additionally, using a signal integrity analysis tool can help identify potential issues before they become problems.
The maximum cable length supported by the DS90LV047ATMTC depends on the specific application and the type of cable used. However, as a general rule, the device can support cable lengths of up to 10 meters at a data rate of 1.5 Gbps. Longer cable lengths may be possible at lower data rates.
To troubleshoot issues with the DS90LV047ATMTC, start by verifying that the device is properly powered and that the input signals are within the specified voltage range. Use an oscilloscope to check the signal quality and look for signs of signal degradation or distortion. Also, check the device's temperature and ensure that it is within the specified operating range.
Yes, the DS90LV047ATMTC can be used in a multi-lane configuration to increase the overall data transfer rate. However, it's essential to ensure that the lanes are properly synchronized and that the clock signals are properly distributed to each lane.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90LV047ATMTC Overview

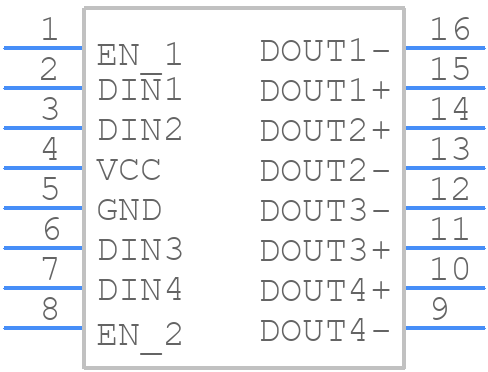

Use the download button to access the DS90LV047ATMTC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90L,
or try a keyword search, such as Line Driver or Receivers
