Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the signal traces as short as possible. Additionally, it's recommended to use a common mode filter and to decouple the power supply with capacitors.
To ensure reliable operation in high-temperature environments, it's recommended to follow the thermal design guidelines provided by Texas Instruments, including using a heat sink and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range.
The maximum cable length supported by the DS90LV047ATMTCX/NOPB depends on the specific application and the type of cable used. However, as a general guideline, Texas Instruments recommends keeping the cable length as short as possible, and using a cable with a characteristic impedance of 100 ohms.
To troubleshoot issues with the DS90LV047ATMTCX/NOPB, it's recommended to use a logic analyzer or an oscilloscope to capture and analyze the signal waveforms. Additionally, checking the power supply voltage, signal termination, and PCB layout can help identify the root cause of the issue.
Yes, when using the DS90LV047ATMTCX/NOPB, it's recommended to follow good EMI/EMC design practices, such as using a shielded enclosure, keeping the device away from noise sources, and using EMI filters or shielding on the cables.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90LV047ATMTCX/NOPB Overview

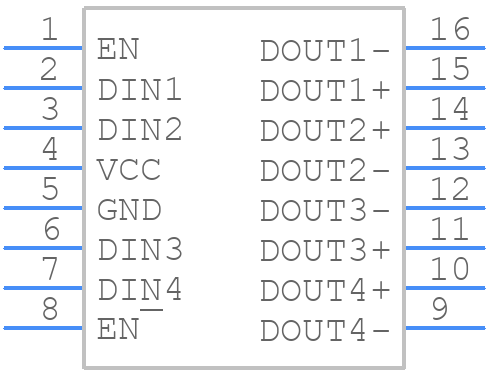

Use the download button to access the DS90LV047ATMTCX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90L,
or try a keyword search, such as Line Driver or Receivers
