A good PCB layout for the DS90LV048ATMX/NOPB involves keeping the differential pairs as close together as possible, using a solid ground plane, and minimizing the length of the traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure signal integrity with the DS90LV048ATMX/NOPB, it's essential to maintain a controlled impedance environment, use differential signaling, and minimize reflections and crosstalk. Additionally, using a termination resistor and a common-mode filter can help improve signal integrity.
The maximum cable length supported by the DS90LV048ATMX/NOPB depends on the specific application and the type of cable used. However, as a general guideline, the maximum cable length is typically around 10-15 meters for a 3.3V supply voltage and 10-20 meters for a 5V supply voltage.
To troubleshoot issues with the DS90LV048ATMX/NOPB, start by checking the power supply voltage, ensuring that it's within the recommended range. Then, verify that the input signals are within the specified range and that the output signals are not overloaded. Use an oscilloscope to check for signal integrity and look for signs of signal degradation or distortion.
The DS90LV048ATMX/NOPB is rated for operation up to 85°C, but it's essential to ensure that the device is properly heat-sinked and that the PCB is designed to dissipate heat effectively. It's also crucial to follow the recommended operating conditions and derating guidelines to ensure reliable operation in high-temperature environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90LV048ATMX/NOPB Overview

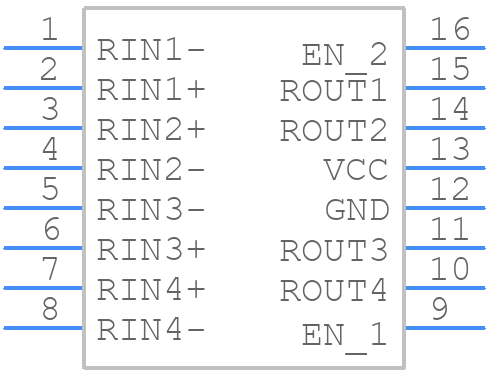

Use the download button to access the DS90LV048ATMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90L,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
