Texas Instruments provides a recommended PCB layout in the DS90UB635TRHBTQ1 evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management.
The DS90UB635TRHBTQ1 has a variety of configuration options, including input/output settings, clocking, and power management. Engineers can use the TI Precision Labs - FPD-Link III Serializer/Deserializer (SerDes) training series or the DS90UB635TRHBTQ1 datasheet to understand the configuration options and use the TI-provided software tools, such as the DS90UB635TRHBTQ1 Evaluation Software, to configure the device for their specific application.
The maximum cable length supported by the DS90UB635TRHBTQ1 depends on the specific application and the type of cable used. In general, the device supports cable lengths up to 10 meters at 3.5 Gbps and 5 meters at 6 Gbps. However, the actual cable length may be limited by the signal integrity, noise, and jitter requirements of the application.
Engineers can use the TI-provided software tools, such as the DS90UB635TRHBTQ1 Evaluation Software, to troubleshoot issues with the device. Additionally, the datasheet and application notes provide guidance on troubleshooting common issues, such as signal integrity problems, clocking issues, and power management issues.
Yes, the DS90UB635TRHBTQ1 is compatible with other FPD-Link III devices from Texas Instruments, including serializers, deserializers, and repeaters. The device is designed to be part of a larger FPD-Link III ecosystem, allowing engineers to design complex systems with multiple devices.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90UB635TRHBTQ1 Overview

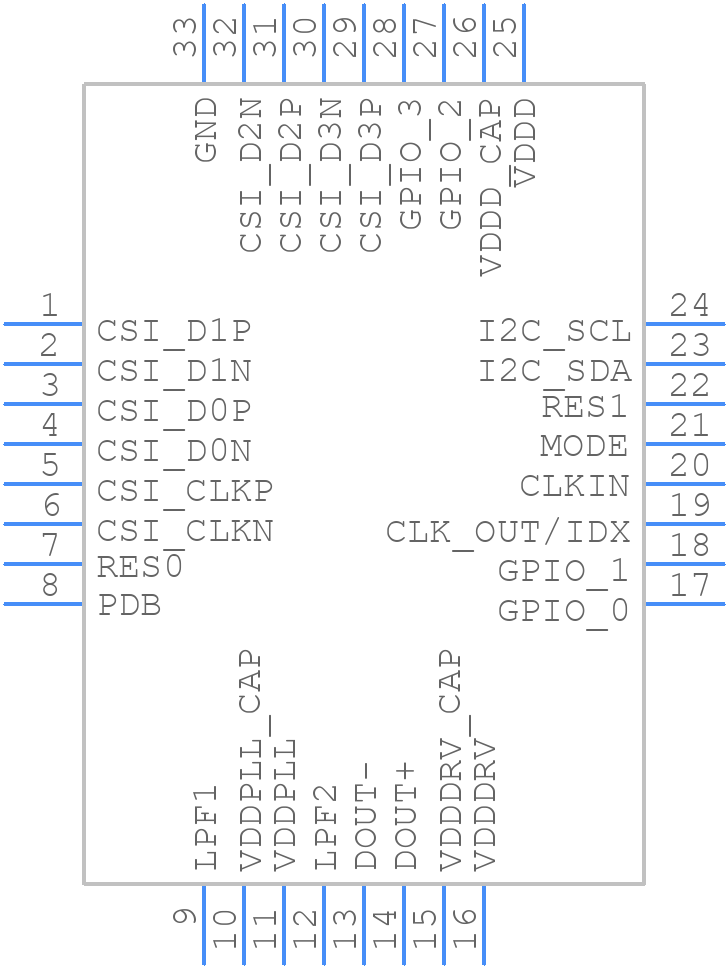

Use the download button to access the DS90UB635TRHBTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90U,
or try a keyword search, such as Line Driver or Receivers
