Texas Instruments provides a recommended PCB layout in the DS90UB903QSQE/NOPB evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management.
To ensure signal integrity, follow the recommended PCB layout, use controlled impedance traces, and add signal termination resistors as specified in the datasheet. Additionally, use a common mode filter or a shielded cable to reduce electromagnetic interference (EMI).
The maximum cable length supported by the DS90UB903QSQE/NOPB depends on the specific application and the type of cable used. As a general guideline, the datasheet recommends a maximum cable length of 3 meters for FPD-Link III applications. However, longer cable lengths may be possible with proper signal conditioning and cable selection.
The DS90UB903QSQE/NOPB can be configured using the I2C interface or through the use of external resistors. The datasheet provides detailed information on the available configuration options and the corresponding register settings. Additionally, Texas Instruments provides software development kits (SDKs) and application notes to help with configuration and customization.
The power consumption of the DS90UB903QSQE/NOPB depends on the specific application and the operating mode. The datasheet provides typical power consumption values for different operating modes, ranging from 150 mW to 300 mW. However, actual power consumption may vary depending on the system design and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90UB903QSQE/NOPB Overview

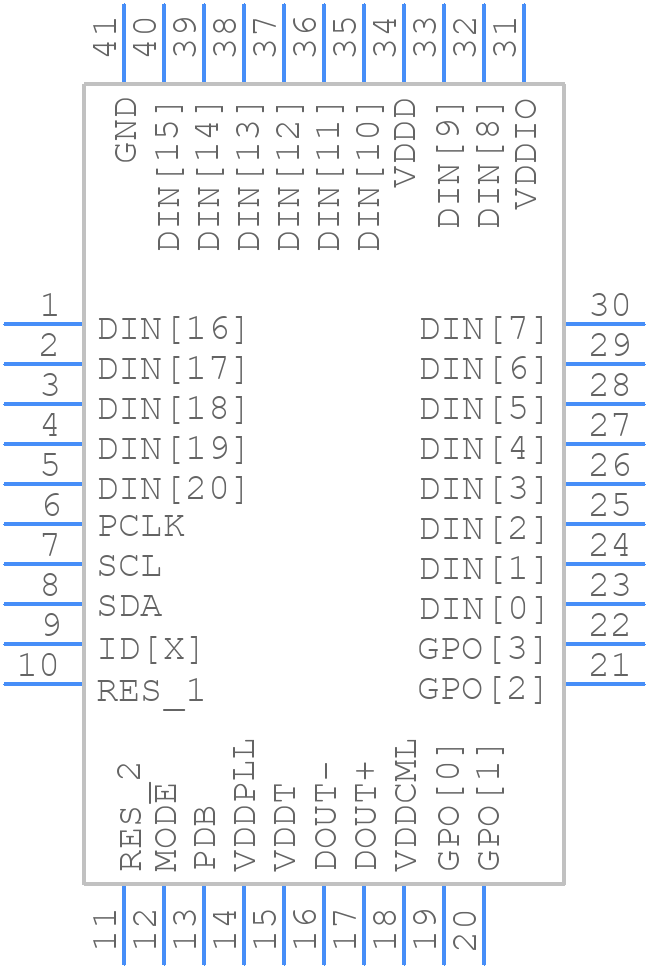

Use the download button to access the DS90UB903QSQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90U,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
