Texas Instruments provides a recommended PCB layout guide for the DS90UB934TRGZRQ1 in the 'Layout' section of the datasheet. Additionally, the TI website has a PCB layout guide document that provides detailed guidelines for designing a reliable and high-speed PCB layout.
To ensure signal integrity with the DS90UB934TRGZRQ1, it's essential to follow proper PCB design and layout guidelines, use controlled impedance traces, and add signal termination resistors as recommended in the datasheet. Additionally, using a signal integrity analysis tool can help identify potential issues before prototyping.
The maximum cable length supported by the DS90UB934TRGZRQ1 depends on the specific application and the type of cable used. However, as a general guideline, the datasheet recommends a maximum cable length of 3 meters for FPD-Link III applications. For longer cable lengths, repeaters or active cables may be required.
To troubleshoot issues with the DS90UB934TRGZRQ1, start by reviewing the datasheet and application notes for proper configuration and setup. Use oscilloscopes and logic analyzers to debug signal integrity issues. Texas Instruments also provides a range of development tools and software to help debug and optimize the device's performance.
The power consumption of the DS90UB934TRGZRQ1 depends on the specific application and operating conditions. However, the datasheet provides a detailed power consumption table that lists the typical and maximum power consumption values for different operating modes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90UB934TRGZRQ1 Overview

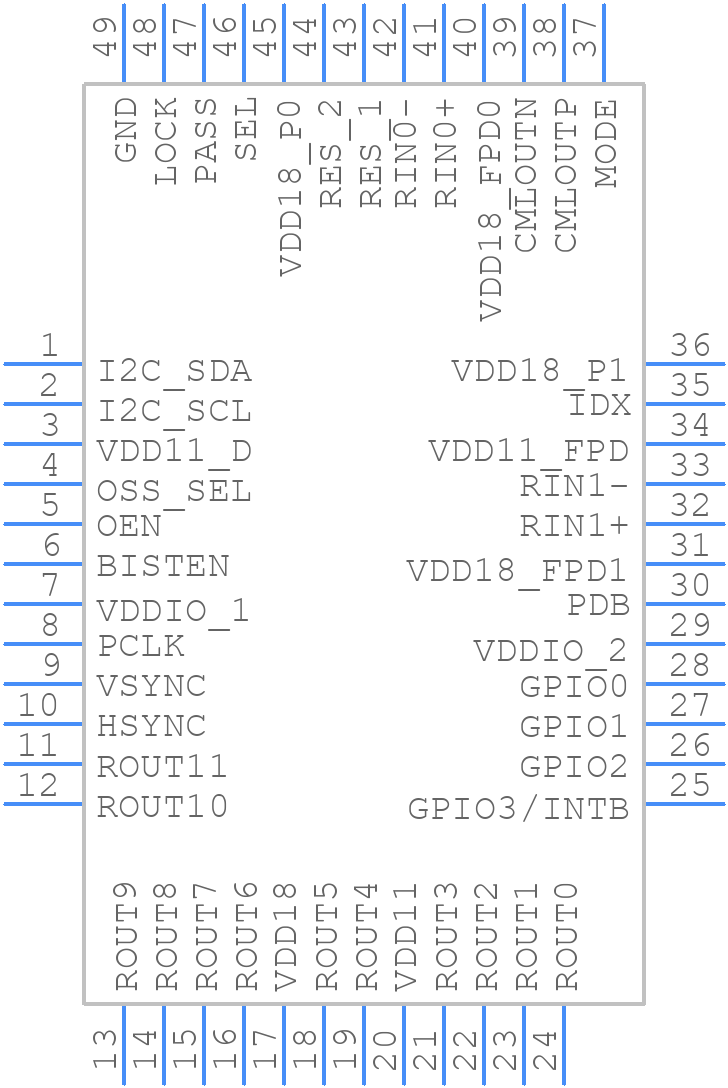

Use the download button to access the DS90UB934TRGZRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90U,
or try a keyword search, such as Line Driver or Receivers
