Texas Instruments provides a recommended PCB layout guide for the DS90UB953ATRHBTQ1, which includes guidelines for component placement, routing, and thermal management. It's essential to follow this guide to ensure optimal performance and minimize signal integrity issues.
The DS90UB953ATRHBTQ1 can be configured for different video modes using the I2C interface. The device has several registers that control the video mode, resolution, and other settings. Refer to the datasheet and application notes for specific register settings and configuration examples.
The maximum cable length supported by the DS90UB953ATRHBTQ1 depends on the specific application and the type of cable used. In general, the device supports cable lengths up to 10 meters for FPD-Link III and up to 15 meters for FPD-Link II. However, the actual cable length may vary depending on the signal quality and the specific system requirements.
To troubleshoot issues with the DS90UB953ATRHBTQ1, start by checking the power supply, clock, and reset signals. Verify that the device is properly configured and that the I2C interface is functioning correctly. Use oscilloscopes and logic analyzers to debug the signal integrity and protocol issues. Refer to the datasheet and application notes for troubleshooting guidelines and FAQs.
The DS90UB953ATRHBTQ1 is a FPD-Link III device, which is backward compatible with FPD-Link II devices. However, it's essential to ensure that the specific device and system requirements are met, including the clock frequency, data rate, and signal integrity. Refer to the datasheet and application notes for compatibility information and guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90UB953ATRHBTQ1 Overview

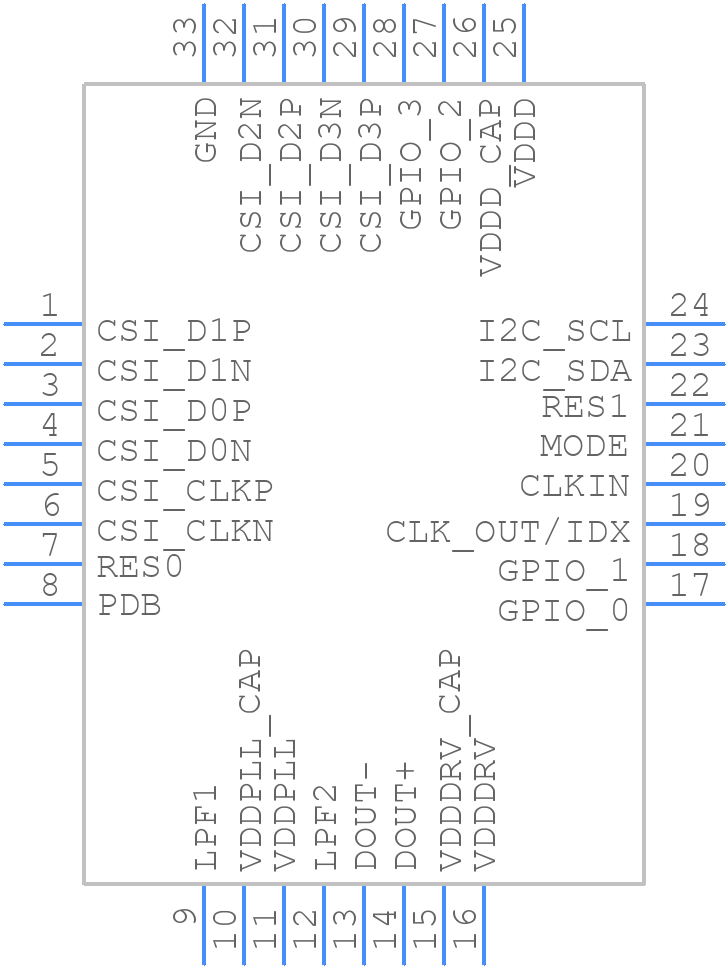

Use the download button to access the DS90UB953ATRHBTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90U,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
