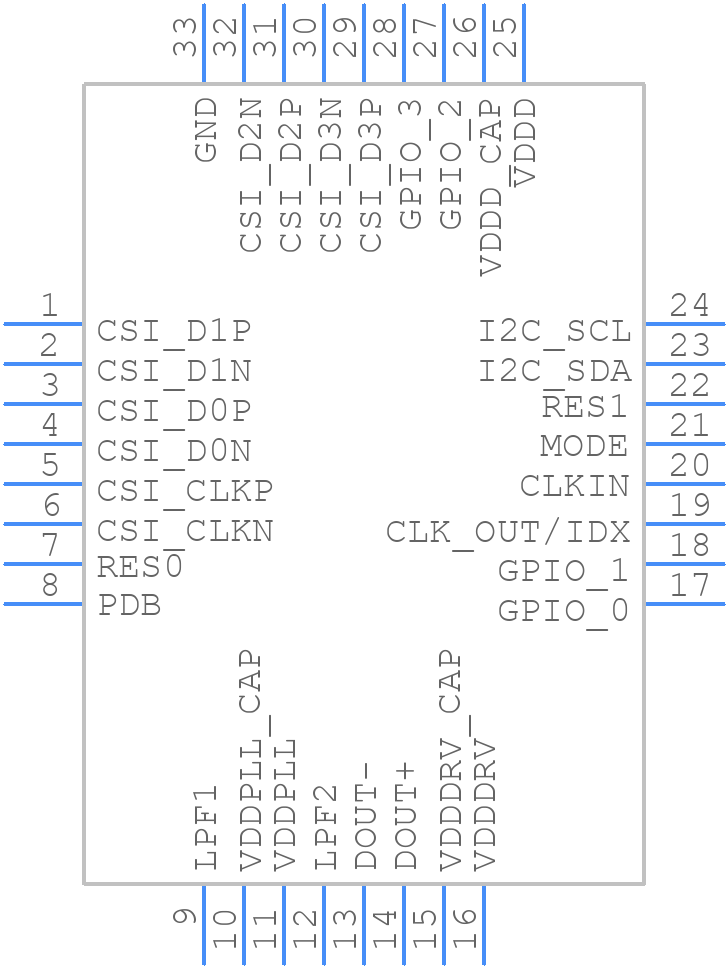

DS90UB953TRHBTQ1 - Texas Instruments

DS90UB953TRHBTQ1 Details

• Manufacturer Part Number:

  DS90UB953TRHBTQ1

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  VQFN-32

• Country Of Origin:

  Mainland China, Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Date Of Intro:

  2016-09-13

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Differential Output:

  YES

• Driver Number of Bits:

  1

• High Level Input Current-Max:

  0.00002 A

• Input Characteristics:

  STANDARD

• Interface IC Type:

  LINE DRIVER

• Interface Standard:

  GENERAL PURPOSE

• JESD-30 Code:

  S-PQCC-N32

• JESD-609 Code:

  e4

• Length:

  5 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  32

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Out Swing-Min:

  1.04 V

• Output Low Current-Max:

  0.004 A

• Output Polarity:

  COMPLEMENTARY

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1 mm

• Supply Current-Max:

  225 mA

• Supply Voltage-Max:

  1.89 V

• Supply Voltage-Min:

  1.71 V

• Supply Voltage-Nom:

  1.8 V

• Supply Voltage1-Max:

  1.89 V

• Supply Voltage1-Min:

  1.71 V

• Supply Voltage1-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  5 mm
