DS90UH926QSQE/NOPB - Texas Instruments

DS90UH926QSQE/NOPB Details

• Manufacturer Part Number:

  DS90UH926QSQE/NOPB

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

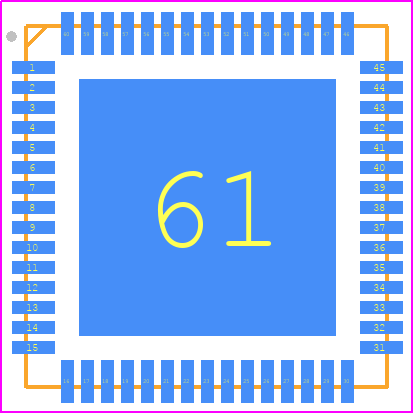

• Part Package Code:

  QFN

• Package Description:

  WQFN-60

• Pin Count:

  60

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• High Level Input Current-Max:

  0.00001 A

• Input Characteristics:

  DIFFERENTIAL SCHMITT TRIGGER

• Interface IC Type:

  LINE RECEIVER

• Interface Standard:

  GENERAL PURPOSE

• JESD-30 Code:

  S-XQCC-N60

• JESD-609 Code:

  e3

• Length:

  9 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  60

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Out Swing-Min:

  0.36 V

• Output Characteristics:

  DIFFERENTIAL

• Output Low Current-Max:

  0.004 A

• Output Polarity:

  COMPLEMENTARY

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC60,.35SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Receiver Number of Bits:

  1

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  0.8 mm

• Supply Current-Max:

  145 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Supply Voltage1-Max:

  3.6 V

• Supply Voltage1-Min:

  3 V

• Supply Voltage1-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  9 mm
