Texas Instruments provides a recommended PCB layout guide in their application note SLUA623, which includes guidelines for signal routing, power supply decoupling, and thermal management.
To ensure reliable operation over the full temperature range, it is essential to follow the recommended operating conditions, including power supply voltage, clock frequency, and thermal management. Additionally, consider using a thermal pad or heat sink to dissipate heat generated by the device.
The built-in clock generator has limitations on the maximum clock frequency, jitter, and phase noise. For high-speed applications, an external clock source may be required to meet the system's timing requirements. Refer to the datasheet for specific clock generator limitations.
To troubleshoot issues with the deserializer, start by verifying the input signal integrity, clock frequency, and power supply voltage. Use the device's built-in diagnostic features, such as the error detection and correction mechanisms, to identify the source of the issue. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
Using a lower-grade device in an automotive application may compromise the system's reliability, performance, and safety. Automotive-grade devices are designed to meet stricter requirements for temperature range, vibration, and electromagnetic compatibility. Using a lower-grade device may result in reduced system performance, increased failure rates, and potential safety hazards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS90UH927QSQX/NOPB Overview

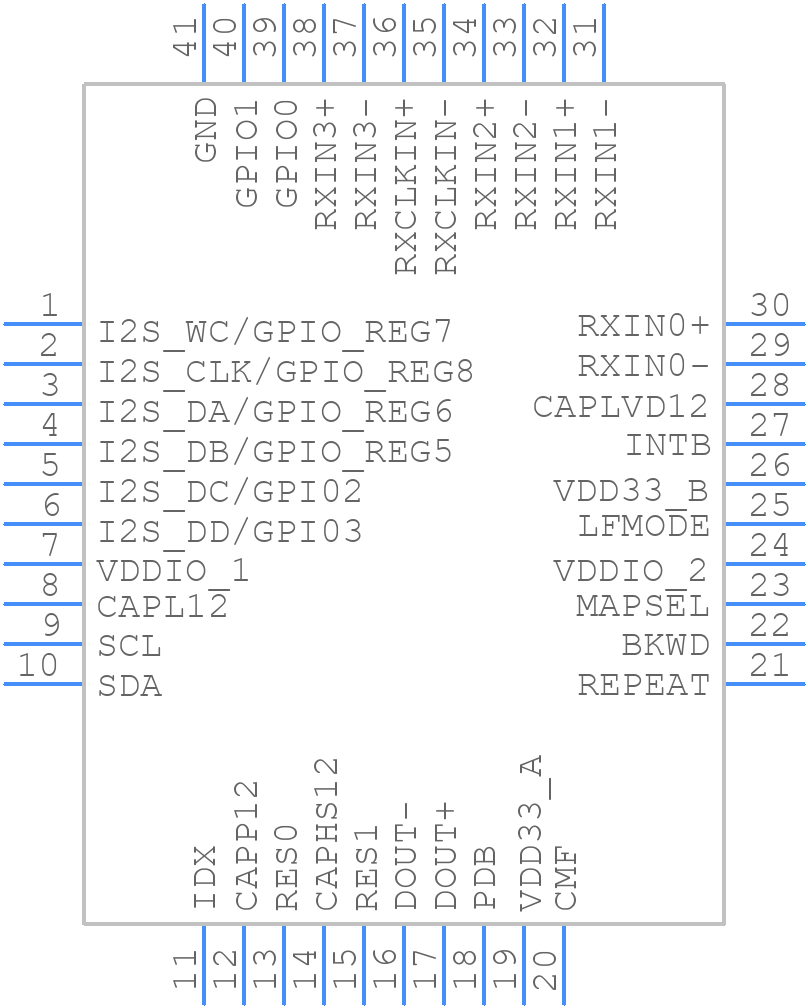

Use the download button to access the DS90UH927QSQX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS90U,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
