A good PCB layout for the DS91M040TSQ/NOPB involves keeping the signal traces short and direct, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended PCB layout in the datasheet and application notes.
To ensure reliable operation in high-temperature environments, ensure that the device is operated within its specified temperature range (-40°C to 125°C), use a heat sink if necessary, and follow proper thermal design guidelines. Additionally, consider using thermal interface materials and ensure good airflow around the device.
The recommended termination scheme for the DS91M040TSQ/NOPB depends on the specific application. For point-to-point connections, use a 100-ohm differential termination. For multi-drop connections, use a 50-ohm single-ended termination. Consult the datasheet and application notes for more information.
To troubleshoot issues with the DS91M040TSQ/NOPB, use oscilloscopes or logic analyzers to monitor signal quality and data transmission. Check for signal attenuation, jitter, and noise. Verify that the device is properly configured and that the PCB layout meets the recommended guidelines. Consult the datasheet, application notes, and TI's support resources for further assistance.
The DS91M040TSQ/NOPB requires a specific power sequencing to ensure proper operation. The recommended power-up sequence is VCC, then VCCA, and finally VCCIO. The power-down sequence is the reverse of the power-up sequence. Consult the datasheet for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS91M040TSQ/NOPB Overview

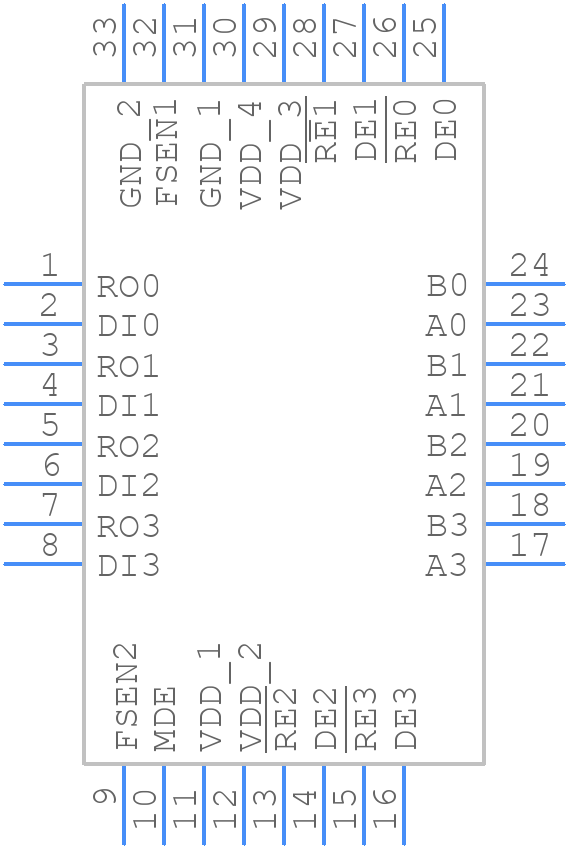

Use the download button to access the DS91M040TSQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS91M,
or try a keyword search, such as Line Driver or Receivers
