Texas Instruments provides a recommended PCB layout in the DS91M124TMAX/NOPB evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To ensure reliable operation over the full temperature range of -40°C to 125°C, it is essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and avoiding thermal hotspots. Additionally, ensure that the device is operated within its specified voltage and current limits.
Operating the DS91M124TMAX/NOPB at a lower voltage than the recommended 3.3V may result in reduced performance, increased power consumption, and potential reliability issues. Operating at a higher voltage may result in increased power consumption, heat generation, and potential damage to the device. It is recommended to operate the device within the specified voltage range to ensure optimal performance and reliability.
To troubleshoot issues with the I2C interface, check the I2C bus voltage levels, clock frequency, and signal integrity. Ensure that the I2C bus is properly terminated, and that there are no bus conflicts or signal reflections. Use an oscilloscope or logic analyzer to monitor the I2C bus signals and identify any errors or anomalies.
Using a different clock frequency than the recommended 25MHz may affect the device's performance, power consumption, and accuracy. The device is optimized for operation at 25MHz, and deviating from this frequency may result in reduced performance, increased power consumption, or errors. It is recommended to use the recommended clock frequency to ensure optimal performance and accuracy.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS91M124TMAX/NOPB Overview

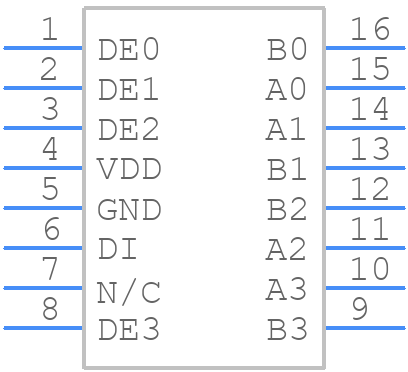

Use the download button to access the DS91M124TMAX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS91M,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
