Texas Instruments provides a recommended PCB layout in the DS92CK16TMTC evaluation module documentation, which includes guidelines for signal routing, power supply decoupling, and thermal management.
To ensure reliable operation in high-temperature environments, it is essential to follow proper thermal management techniques, such as using a heat sink, thermal interface material, and ensuring good airflow. Additionally, the device should be operated within its specified temperature range and power dissipation limits.
The maximum cable length supported by the DS92CK16TMTC depends on the specific application and the type of cable used. However, as a general guideline, Texas Instruments recommends keeping the cable length as short as possible (less than 1 meter) to minimize signal attenuation and ensure reliable operation.
While the DS92CK16TMTC is designed to work with TI's FPD-Link serializers, it is possible to use it with non-TI serializers/deserializers. However, compatibility and performance may vary, and additional testing and validation may be required to ensure reliable operation.
To troubleshoot issues with the DS92CK16TMTC, start by reviewing the device's datasheet and application notes, and checking for proper power supply, clocking, and signal routing. Use oscilloscopes and logic analyzers to debug signal integrity and protocol issues. Texas Instruments also provides technical support and resources to help with troubleshooting and debugging.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
DS92CK16TMTC Overview

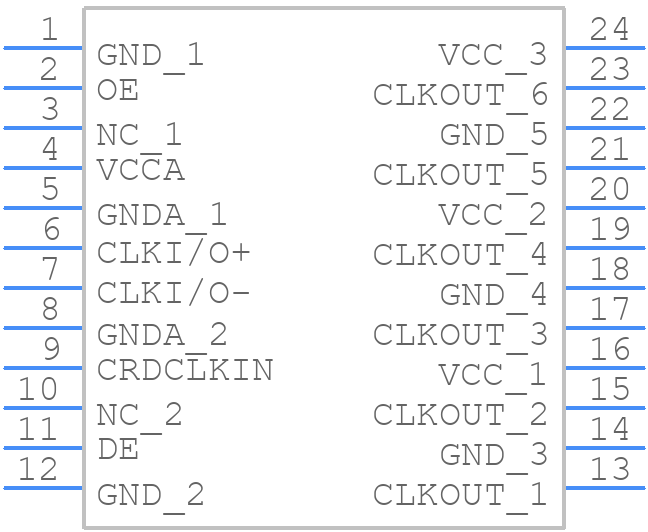

Use the download button to access the DS92CK16TMTC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS92C,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
