Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the signal traces as short as possible. Additionally, it's recommended to use a common mode filter and to decouple the power supply with capacitors.
To ensure reliable operation in high-temperature environments, it's recommended to follow the thermal design guidelines provided by Texas Instruments, including using a heat sink and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range.
The recommended termination scheme for the DS92LV1023EMQ/NOPB is a 100-ohm differential termination at the receiver end. This helps to minimize reflections and ensure reliable data transmission.
To troubleshoot issues with the DS92LV1023EMQ/NOPB, it's recommended to use oscilloscopes and logic analyzers to analyze the signal waveforms and data transmission patterns. Additionally, checking the PCB layout and signal routing, as well as ensuring proper power supply decoupling, can help identify and resolve issues.
Yes, when designing with the DS92LV1023EMQ/NOPB, it's important to consider EMI/EMC issues, such as radiated emissions and conducted emissions. This can be achieved by following good PCB design practices, using shielding, and ensuring proper grounding and decoupling.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
DS92LV1023EMQ/NOPB Overview

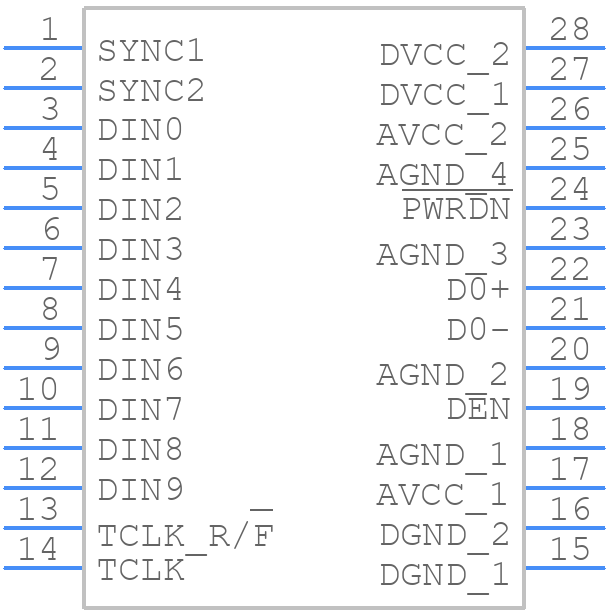

Use the download button to access the DS92LV1023EMQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS92L,
or try a keyword search, such as Line Driver or Receivers
