A good PCB layout for the DS92LV1023EMQX involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the load. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure signal integrity, it's essential to maintain a controlled impedance environment, use differential signaling, and minimize crosstalk. Also, use a common-mode filter or a common-mode choke to reduce electromagnetic interference (EMI).
The maximum cable length supported by the DS92LV1023EMQX depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 10 meters at 1 Gbps and up to 5 meters at 3 Gbps.
To troubleshoot issues with the DS92LV1023EMQX, start by checking the power supply voltage, ensuring it's within the recommended range. Then, verify the input and output signals using an oscilloscope, and check for any signs of signal degradation or distortion. Also, review the PCB layout and ensure it meets the recommended guidelines.
Yes, the DS92LV1023EMQX can be used in a multi-point configuration, but it's essential to ensure that the total capacitance of the bus does not exceed the recommended maximum value. Additionally, the device's output current capability should be considered when designing the multi-point configuration.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS92LV1023EMQX/NOPB Overview

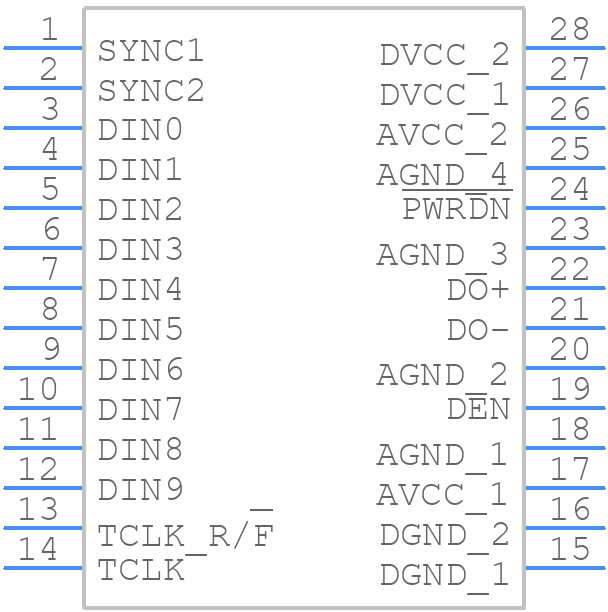

Use the download button to access the DS92LV1023EMQX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS92L,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
