The maximum cable length supported by the DS92LV1212TMSA is dependent on the specific application and the type of cable used. However, as a general guideline, Texas Instruments recommends a maximum cable length of 10 meters for FPD-Link III applications.
The DS92LV1212TMSA can be configured using the SPI interface. Texas Instruments provides a software development kit (SDK) that includes a GUI-based configuration tool, as well as API documentation and example code, to help engineers configure the device for their specific application.
The power consumption of the DS92LV1212TMSA varies depending on the operating mode and the frequency of operation. According to the datasheet, the typical power consumption is around 250 mW at 1.8V and 100 MHz. However, engineers should consult the datasheet and perform their own power consumption calculations based on their specific application requirements.
Yes, the DS92LV1212TMSA is compatible with other FPD-Link devices from Texas Instruments. It is designed to be backward compatible with previous generations of FPD-Link devices, and it can be used in conjunction with other FPD-Link devices to create a complete FPD-Link system.
The latency of the DS92LV1212TMSA is dependent on the specific application and the type of data being transmitted. However, according to the datasheet, the typical latency is around 10-20 clock cycles, which translates to around 100-200 ns at 100 MHz.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS92LV1212TMSA Overview

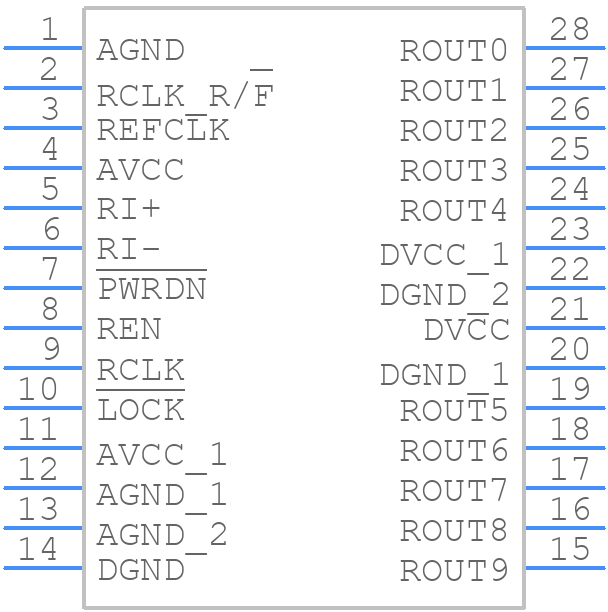

Use the download button to access the DS92LV1212TMSA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS92L,
or try a keyword search, such as Line Driver or Receivers
