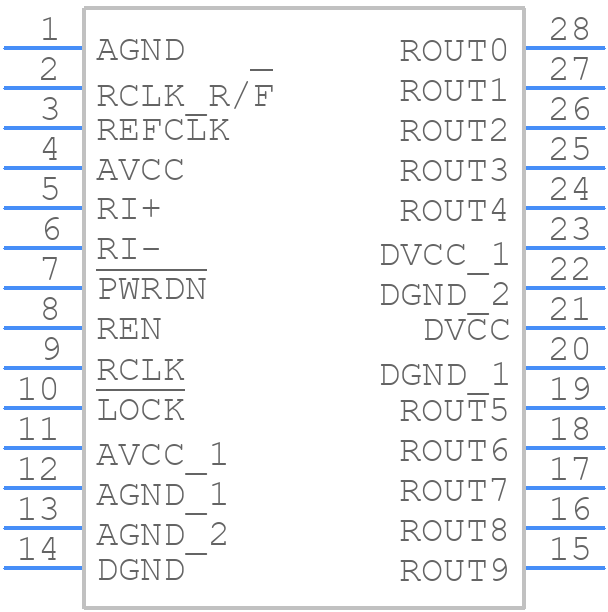

DS92LV1224TMSA - Texas Instruments

DS92LV1224TMSA Details

• Manufacturer Part Number:

  DS92LV1224TMSA

• Brand Name:

  Texas Instruments

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SSOP

• Package Description:

  SSOP-28

• Pin Count:

  28

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Input Characteristics:

  DIFFERENTIAL SCHMITT TRIGGER

• Interface IC Type:

  LINE RECEIVER

• Interface Standard:

  GENERAL PURPOSE

• JESD-30 Code:

  R-PDSO-G28

• JESD-609 Code:

  e0

• Length:

  10.2 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  28

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP28,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  235

• Qualification Status:

  Not Qualified

• Receiver Number of Bits:

  1

• Seated Height-Max:

  2 mm

• Supply Current-Max:

  110 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  20

• Width:

  5.29 mm
