Texas Instruments provides a recommended PCB layout in the DS92LX2121SQ evaluation module (EVM) user's guide, which includes guidelines for signal routing, component placement, and power supply decoupling to ensure optimal performance and minimize signal integrity issues.
The DS92LX2121SQ is a highly configurable device, and configuration is typically done through the use of a serial interface (such as I2C or SPI) to program the device's registers. Texas Instruments provides a software development kit (SDK) and application notes that provide guidance on configuring the device for specific applications, including HDMI and DisplayPort.
The maximum cable length supported by the DS92LX2121SQ depends on the specific application and the type of cable used. In general, the device supports cable lengths up to 30 meters for HDMI and 15 meters for DisplayPort, but this can vary depending on the specific use case and the quality of the cable.
Texas Instruments provides a range of tools and resources to help troubleshoot issues with the DS92LX2121SQ, including a troubleshooting guide, application notes, and technical support forums. Additionally, the device has built-in diagnostic features, such as error detection and reporting, that can help identify and debug issues.
Yes, the DS92LX2121SQ is compatible with a range of industry standards, including HDMI 2.0, DisplayPort 1.4, and MHL. The device is designed to meet the requirements of these standards, and Texas Instruments provides documentation and support to help ensure compliance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS92LX2121SQ/NOPB Overview

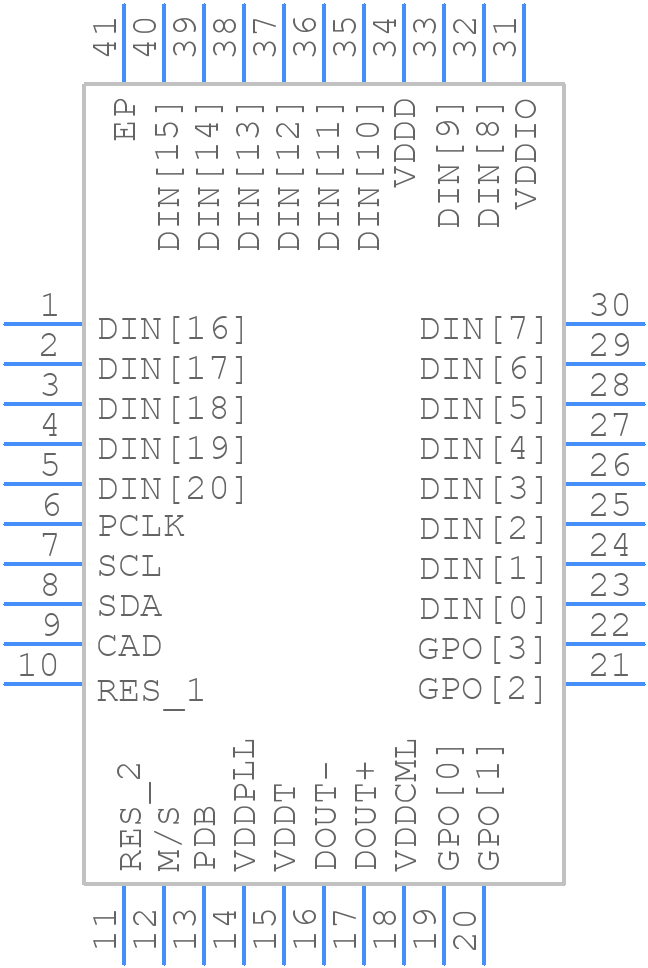

Use the download button to access the DS92LX2121SQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS92L,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
