Texas Instruments provides a recommended PCB layout in the DS92LX2121SQX/NOPB evaluation module documentation, which includes guidelines for signal routing, component placement, and power supply decoupling. Following this layout can help minimize signal integrity issues and ensure optimal performance.
Texas Instruments recommends using an oscilloscope to monitor the clock signals and verify that they are within the specified frequency and jitter tolerance. Additionally, checking the device's register settings and ensuring that the clocking and synchronization pins are properly configured can help identify and resolve issues.
The maximum cable length supported by the DS92LX2121SQX/NOPB depends on the specific application and the type of cable used. However, as a general guideline, Texas Instruments recommends keeping the cable length below 10 meters to ensure reliable operation. Longer cable lengths may require additional signal conditioning or repeaters to maintain signal integrity.
To ensure EMC with the DS92LX2121SQX/NOPB, Texas Instruments recommends following proper PCB design and layout practices, such as using ground planes, shielding, and filtering. Additionally, ensuring that the device is properly decoupled and that the power supply is well-regulated can help minimize electromagnetic interference.
The DS92LX2121SQX/NOPB has a maximum junction temperature of 125°C. To ensure reliable operation, Texas Instruments recommends using a heat sink or thermal pad to dissipate heat, especially in high-power or high-temperature applications. Additionally, ensuring good airflow and using thermal interface materials can help reduce thermal resistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS92LX2121SQX/NOPB Overview

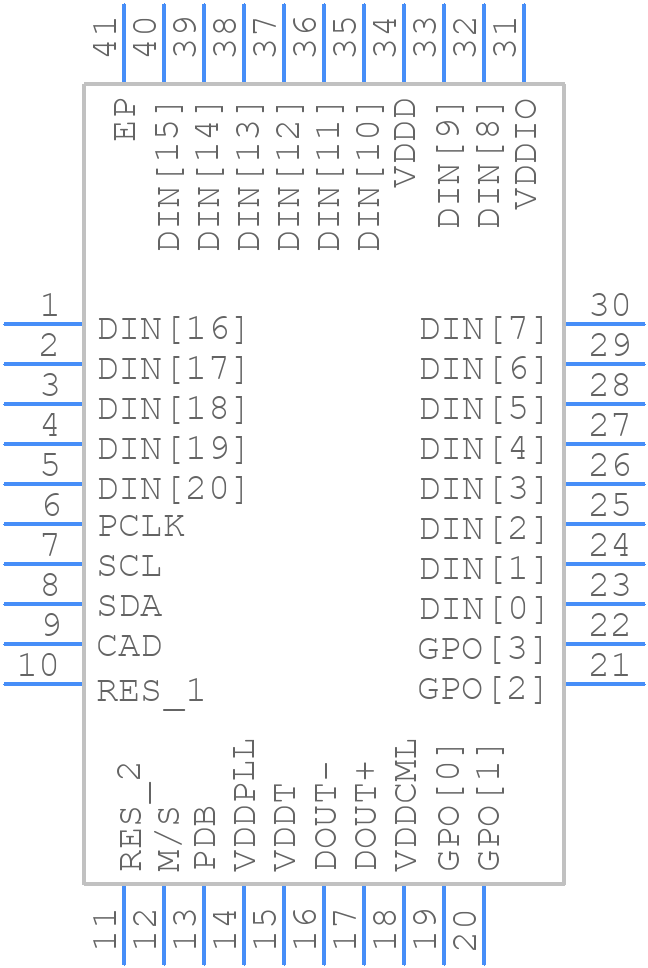

Use the download button to access the DS92LX2121SQX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS92L,
or try a keyword search, such as Line Driver or Receivers
