Texas Instruments provides a recommended PCB layout in the DS92LX2122SQX/NOPB evaluation module documentation, which includes guidelines for signal routing, component placement, and power supply decoupling. Following this layout can help minimize signal integrity issues and ensure optimal performance.
Texas Instruments recommends using an oscilloscope to monitor the clock signals and verify that they are within the specified frequency and jitter tolerance. Additionally, checking the device's register settings and ensuring that the clocking and synchronization configuration is correct can help identify and resolve issues.
The maximum cable length supported by the DS92LX2122SQX/NOPB depends on the specific application and the type of cable used. However, as a general guideline, Texas Instruments recommends keeping the cable length below 10 meters to ensure reliable operation. Longer cable lengths may require additional signal conditioning or repeaters to maintain signal integrity.
To ensure EMC with the DS92LX2122SQX/NOPB, Texas Instruments recommends following proper PCB design and layout practices, such as using ground planes, shielding, and filtering. Additionally, ensuring that the device is properly decoupled and that the power supply is clean and well-regulated can help minimize electromagnetic interference.
The DS92LX2122SQX/NOPB has a thermal pad on the bottom of the package that should be connected to a thermal ground plane on the PCB. This helps to dissipate heat generated by the device. Additionally, ensuring good airflow around the device and using thermal interface materials can help to further reduce thermal resistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS92LX2122SQX/NOPB Overview

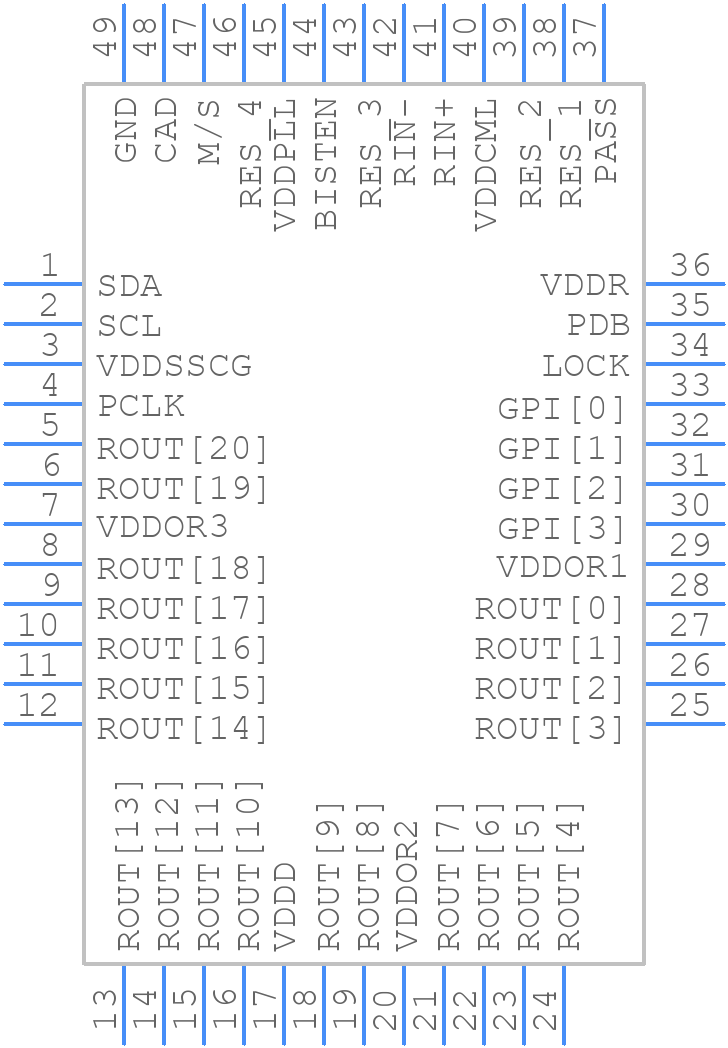

Use the download button to access the DS92LX2122SQX/NOPB schematic symbol, PCB footprint, and 3D model.
