COMMON I/O; 1 RECEIVER ACTIVE UNDER SHUTDOWN; TRISTATABLE RECEIVER
Differential Output:
YES
Driver Number of Bits:
1
High Level Input Current-Max:
0.00002 A
Input Characteristics:
DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type:
LINE TRANSCEIVER
Interface Standard:
EIA-422-A; EIA-485
JESD-30 Code:
R-PDIP-T8
JESD-609 Code:
e3
Length:
9.817 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
70 °C
Out Swing-Min:
1.5 V
Output Low Current-Max:
0.016 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Equivalence Code:
DIP8,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Receive Delay-Max:
25 ns
Receiver Number of Bits:
1
Seated Height-Max:
5.08 mm
Supply Current-Max:
40 mA
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
5 V
Surface Mount:
NO
Technology:
BIPOLAR
Temperature Grade:
COMMERCIAL
Terminal Finish:
MATTE TIN
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Transmit Delay-Max:
25 ns
Width:
7.62 mm
DS96176CN/NOPB Frequently Asked Questions (FAQs)
A good PCB layout for the DS96176CN/NOPB involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
Proper termination for the DS96176CN/NOPB involves using a combination of series and parallel termination resistors to match the impedance of the transmission line. The datasheet provides guidelines for termination, but it's also recommended to consult with a signal integrity expert or use simulation tools to optimize termination.
The DS96176CN/NOPB requires a specific power sequencing to prevent damage to the device. The recommended power-up sequence is to apply VCC first, followed by VDD, and then the input signals. The power-down sequence should be reversed. It's essential to follow the recommended power sequencing to ensure the device operates correctly and to prevent damage.
The DS96176CN/NOPB can generate significant heat, especially at high frequencies. To handle thermal management, it's recommended to use a heat sink or a thermal pad, and to ensure good airflow around the device. The PCB should also be designed to dissipate heat efficiently, and thermal simulation tools can be used to optimize the design.
The DS96176CN/NOPB is a sensitive device and requires proper ESD protection to prevent damage. It's recommended to use ESD protection devices, such as TVS diodes or ESD arrays, on the input and output lines. The PCB should also be designed with ESD protection in mind, using features such as ESD-resistant components and ESD-safe handling procedures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS96176CN/NOPB Overview

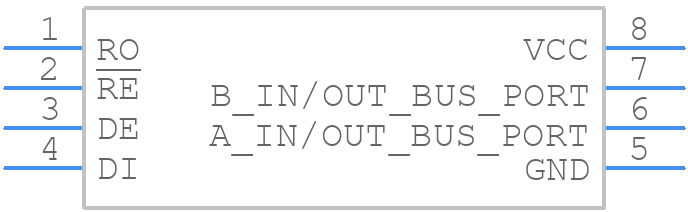

Use the download button to access the DS96176CN/NOPB schematic symbol, PCB footprint, and 3D model.
