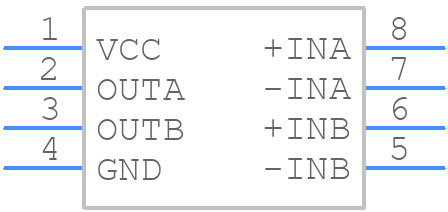

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for DS9637ACM
- Part Number DS9637ACM
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOIC127P62X175-8N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
DS9637ACM Details
-
Manufacturer Part Number:
DS9637ACM
-
Brand Name:
Texas Instruments
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
SOP-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
DS9637ACM Frequently Asked Questions (FAQs)
-
Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. Use a 10nF capacitor between VCC and GND, and a 1uF capacitor between VCC and AVCC. Keep the analog input traces short and away from digital signals.
-
Use a high-precision voltage reference, and ensure the input voltage is within the specified range (0-5V). Use a buffer amplifier if the input impedance is high. Also, consider using a low-pass filter to reduce noise and ensure a stable voltage measurement.
-
The maximum clock frequency for the DS9637ACM is 10MHz. However, it's recommended to operate at a lower frequency (e.g., 4MHz) to ensure reliable operation and minimize power consumption.
-
The DS9637ACM has a built-in POR and BOR. Ensure a stable power supply and add a capacitor (e.g., 10uF) between VCC and GND to filter out noise. Use a reset circuit with a capacitor and resistor to ensure a clean reset signal.
-
The recommended operating temperature range for the DS9637ACM is -40°C to 85°C. However, the device can operate up to 125°C with reduced performance and reliability.
Trust Checks
System Verified
DS9637ACM Overview
Use the download button to access the DS9637ACM schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DS963,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
