A good PCB layout for the DS99R103TVS/NOPB involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. Texas Instruments provides a recommended PCB layout in their application notes.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, consider using thermal simulation tools to model the device's thermal performance.
When using the DS99R103TVS/NOPB in a system with multiple voltage domains, it's crucial to ensure that the device is properly powered and that voltage transitions are managed correctly. This may involve using level translators, voltage regulators, and power sequencing to prevent damage or malfunction.
To troubleshoot issues with the DS99R103TVS/NOPB, use a systematic approach, starting with visual inspection of the PCB and device. Then, use oscilloscopes and logic analyzers to capture signal waveforms and analyze them. Consult the datasheet and application notes for guidance on signal integrity and power management.
Yes, the DS99R103TVS/NOPB is a high-speed device, and as such, it requires careful attention to EMI/EMC considerations. This includes using shielding, filtering, and grounding techniques to minimize electromagnetic interference and ensure compliance with relevant standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS99R103TVS/NOPB Overview

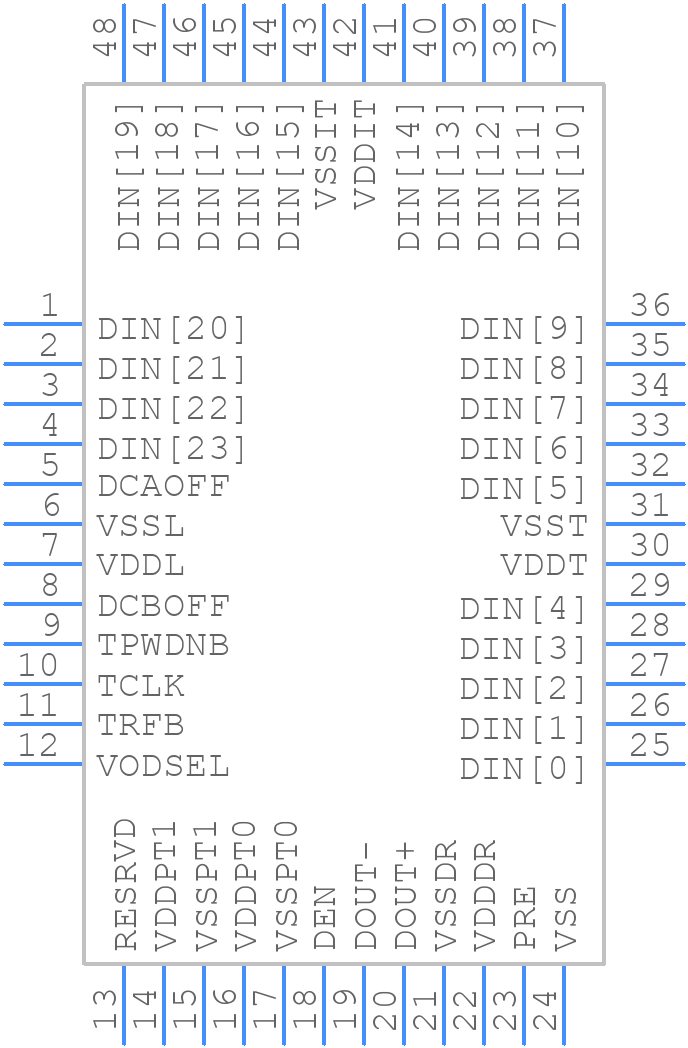

Use the download button to access the DS99R103TVS/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS99R,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
