Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces.
To ensure signal integrity, use a signal integrity analysis tool to simulate the signal transmission and reception, and follow best practices for signal routing, termination, and shielding. Additionally, use a low-jitter clock source and ensure that the signal traces are properly terminated.
The maximum cable length supported by the DS99R104TSQ/NOPB depends on the specific application and the type of cable used. As a general guideline, the datasheet recommends a maximum cable length of 10 meters for a 10-Gbps signal. However, it's recommended to consult with a signal integrity expert or perform simulations to determine the maximum cable length for a specific application.
To troubleshoot issues with the DS99R104TSQ/NOPB, use a logic analyzer or an oscilloscope to capture and analyze the signal transmission and reception. Check for signal integrity issues, such as jitter, noise, and distortion, and verify that the device is properly configured and powered. Consult the datasheet and application notes for troubleshooting guidelines and contact Texas Instruments support if necessary.
The DS99R104TSQ/NOPB is designed to be compatible with other Texas Instruments devices, such as FPGAs, ASICs, and processors. However, it's recommended to consult the datasheet and application notes for specific compatibility information and to verify that the devices are properly configured and interfaced.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS99R104TSQ/NOPB Overview

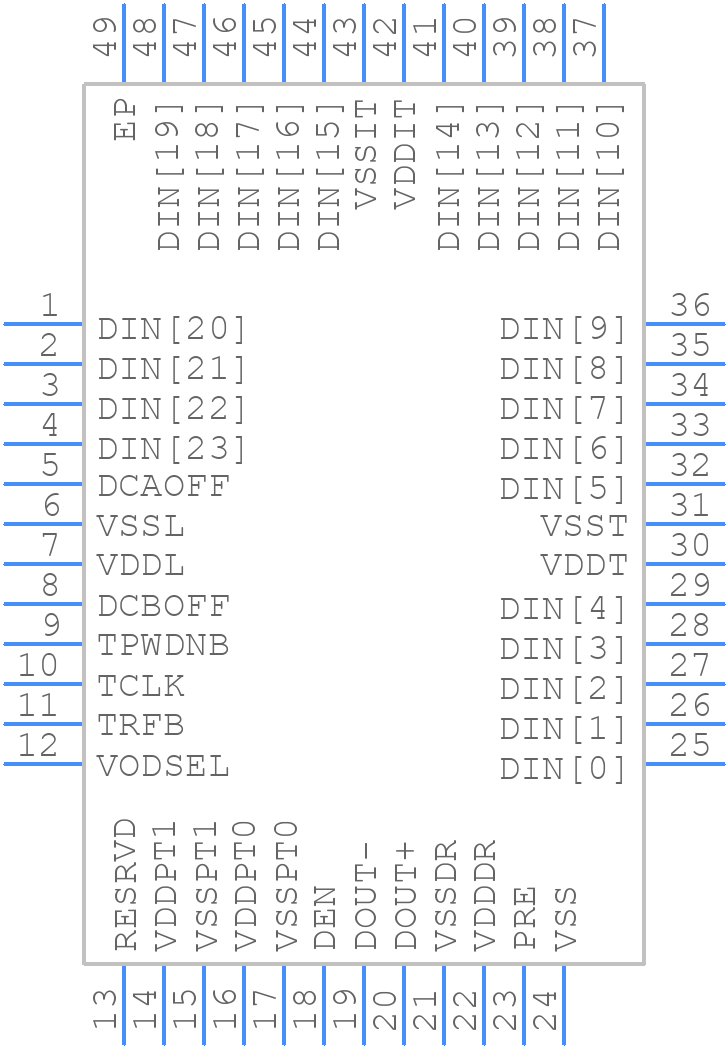

Use the download button to access the DS99R104TSQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS99R,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
