Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces.
To ensure signal integrity, use a signal integrity analysis tool to simulate the signal transmission and reception, and follow best practices for signal routing, termination, and shielding. Additionally, use a low-jitter clock source and ensure that the signal traces are well-matched and impedance-controlled.
The maximum cable length supported by the DS99R106SQX/NOPB depends on the specific application and the type of cable used. As a general guideline, the datasheet recommends a maximum cable length of 10 meters for Category 5e or higher cables. However, it's recommended to consult with a signal integrity expert or perform simulations to determine the maximum cable length for a specific application.
To troubleshoot issues with the DS99R106SQX/NOPB, use a logic analyzer or oscilloscope to capture and analyze the signal transmission and reception. Check for signal integrity issues, such as jitter, skew, and amplitude errors. Also, verify that the device is properly configured and that the clock and data signals are properly aligned.
The power consumption of the DS99R106SQX/NOPB depends on the specific application and the operating conditions. According to the datasheet, the typical power consumption is around 350 mW. However, it's recommended to consult with the datasheet and perform power analysis simulations to determine the exact power consumption for a specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS99R106SQX/NOPB Overview

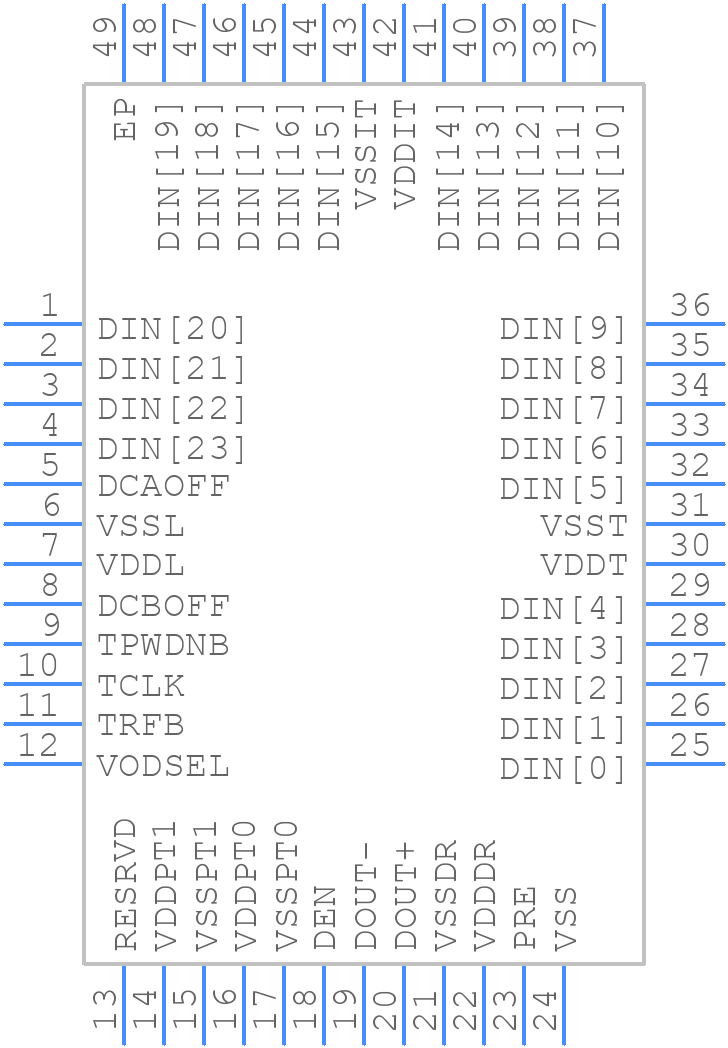

Use the download button to access the DS99R106SQX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS99R,
or try a keyword search, such as Line Driver or Receivers
