Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the signal traces as short as possible. Additionally, it's recommended to use a common mode filter and to decouple the power supply pins with capacitors.
To ensure reliable operation in high-temperature environments, it's recommended to follow the thermal design guidelines provided in the datasheet, including keeping the junction temperature below 125°C and using a heat sink if necessary. Additionally, it's recommended to use a thermal interface material to improve heat transfer between the device and the heat sink.
The maximum cable length supported by the DS99R106VS depends on the specific application and the type of cable used. However, as a general guideline, Texas Instruments recommends keeping the cable length below 100 meters to ensure reliable operation. It's also recommended to use a cable with a characteristic impedance of 100 ohms and to terminate the cable with a 100-ohm resistor at the receiving end.
To troubleshoot issues with the DS99R106VS, it's recommended to follow a systematic approach, including checking the power supply voltage, signal integrity, and device configuration. Additionally, it's recommended to use oscilloscopes and logic analyzers to capture and analyze the signals, and to consult the datasheet and application notes for guidance.
Yes, the DS99R106VS is a high-speed device and requires careful attention to EMI/EMC considerations to ensure reliable operation. It's recommended to follow the EMI/EMC guidelines provided in the datasheet, including using a shielded enclosure, keeping the signal traces as short as possible, and using EMI filters and absorbers as necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS99R106VS/NOPB Overview

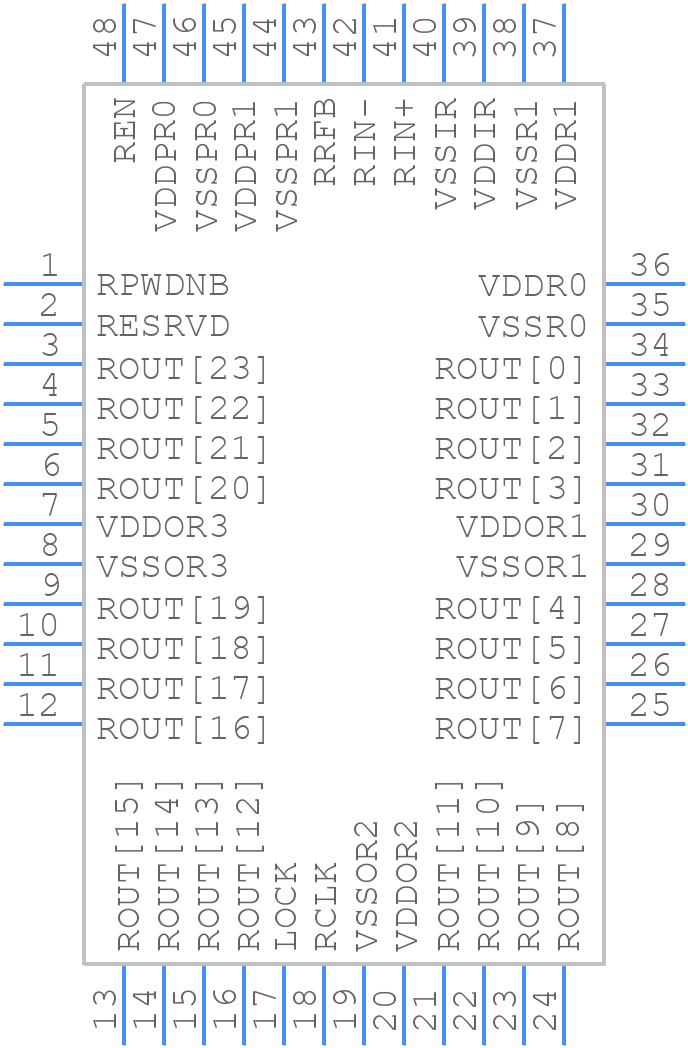

Use the download button to access the DS99R106VS/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS99R,
or try a keyword search, such as Line Driver or Receivers
