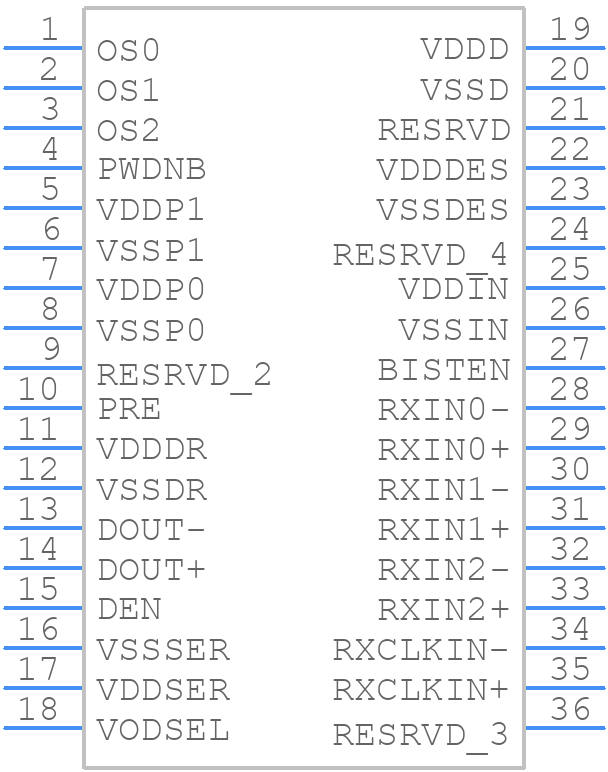

DS99R421QSQ - Texas Instruments

DS99R421QSQ Details

• Manufacturer Part Number:

  DS99R421QSQ

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFN

• Package Description:

  6 X 6 MM, 0.8 MM HEIGHT, 0.5 MM PITCH, LLP-36

• Pin Count:

  36

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• High Level Input Current-Max:

  0.00001 A

• Input Characteristics:

  DIFFERENTIAL

• Interface IC Type:

  LINE RECEIVER

• Interface Standard:

  GENERAL PURPOSE

• JESD-30 Code:

  S-XQCC-N36

• JESD-609 Code:

  e0

• Length:

  6 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  36

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Out Swing-Min:

  0.38 V

• Output Characteristics:

  3-STATE

• Output Polarity:

  COMPLEMENTARY

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Qualification Status:

  Not Qualified

• Receiver Number of Bits:

  3

• Seated Height-Max:

  0.8 mm

• Supply Current-Max:

  130 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Supply Voltage1-Max:

  3.6 V

• Supply Voltage1-Min:

  3 V

• Supply Voltage1-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  6 mm
