Part Image

DSD1791DBR - Texas Instruments

Description: Audio D/A Converter ICs 24-Bit 192kHz Smplng Adv Stg Stereo DAC

Download DSD1791DBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

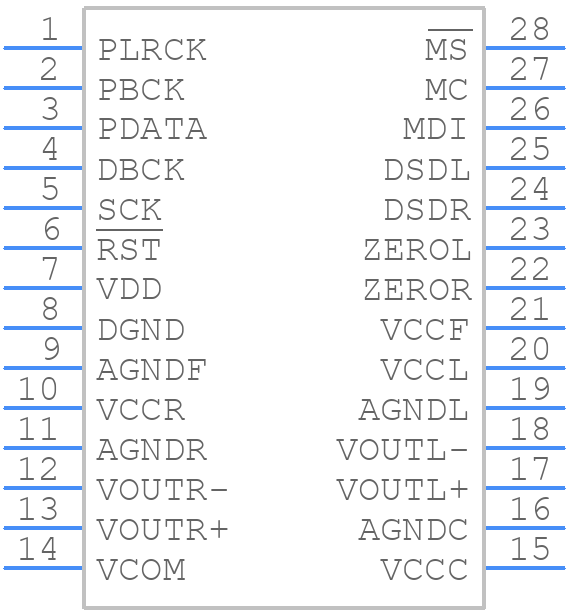

DSD1791DBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DSD1791DBR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB0028A 2021
click to zoom
3D Models
DSD1791DBR - Texas Instruments - 3D model - Small Outline Packages - DB0028A 2021
click to zoom

DSD1791DBR Details

  • Manufacturer Part Number:

    DSD1791DBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    3.2 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.192 MHz

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    16 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

DSD1791DBR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in their application note SLAA523, which includes guidelines for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
  • To minimize high-frequency noise, it is recommended to use a low-pass filter, such as a ferrite bead or a pi-filter, on the power supply lines. Additionally, ensure that the PCB layout is designed to minimize loop areas and keep sensitive analog signals away from the digital signals.
  • The maximum clock frequency for the DSD1791DBR is 50 MHz, as specified in the datasheet. However, it is recommended to use a clock frequency of 40 MHz or lower to ensure reliable operation and minimize jitter.
  • The DSD1791DBR's internal registers can be programmed using the SPI interface. Texas Instruments provides a register programming guide in their datasheet, which includes a detailed description of each register and its associated bits.
  • The POR timing for the DSD1791DBR is typically around 10 ms, during which the device is held in a reset state. After the POR timing, the device is released from reset and begins normal operation.
