Texas Instruments provides a recommended layout and routing guide in their application note SLAA523, which includes guidelines for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
The DSD1793DBR can deliver high output currents, so it's essential to ensure that the PCB traces and components can handle the current. Use thick PCB traces, and consider adding current-sensing resistors to monitor the output current. Additionally, ensure that the output capacitors are rated for high ripple currents.
The DSD1793DBR's performance is affected by temperature, with the output voltage and current changing with temperature. The datasheet provides temperature coefficients for the output voltage and current, which can be used to estimate the performance over temperature. It's essential to consider temperature effects when designing the system.
To ensure stability, follow the recommended layout and routing guidelines, and use the recommended output capacitors and resistors. Additionally, ensure that the input voltage is within the recommended range, and that the output is properly decoupled. If oscillations occur, try adding a small capacitor (e.g., 10nF) between the output and ground.
The DSD1793DBR is a commercial-grade device, but it can be used in high-reliability or automotive applications with proper design and testing. Ensure that the device is operated within its recommended specifications, and that the system is designed to meet the required reliability and safety standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DSD1793DBR Overview

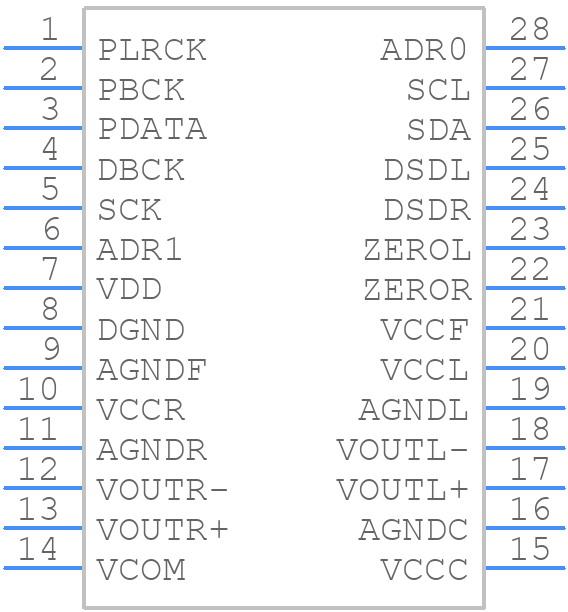

Use the download button to access the DSD1793DBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DSD17,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
