Texas Instruments provides a recommended layout and routing guide in the DSD1794ADB datasheet, but it's also important to follow general high-speed PCB design principles, such as using a solid ground plane, minimizing trace lengths, and avoiding vias and right-angle turns.
Optimizing performance requires understanding the specific requirements of your application, such as signal frequency, amplitude, and impedance. TI provides application notes and design guides that can help, but it's also recommended to consult with TI's technical support team or a experienced analog design engineer.
The DSD1794ADB has a maximum junction temperature of 150°C, and thermal considerations are critical to ensure reliable operation. Ensure good thermal conductivity between the device and the PCB, use thermal vias, and consider heat sinks or thermal interface materials if necessary.
To minimize EMI and RFI, use proper shielding, grounding, and filtering techniques. Ensure that the PCB layout is designed to minimize radiation, and consider using EMI filters or shielding cans around the device.
The DSD1794ADB has specific power sequencing requirements to ensure proper operation. The recommended power-up sequence is VDD, then VREF, and finally AVDD. Consult the datasheet for specific details and timing requirements.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DSD1794ADB Overview

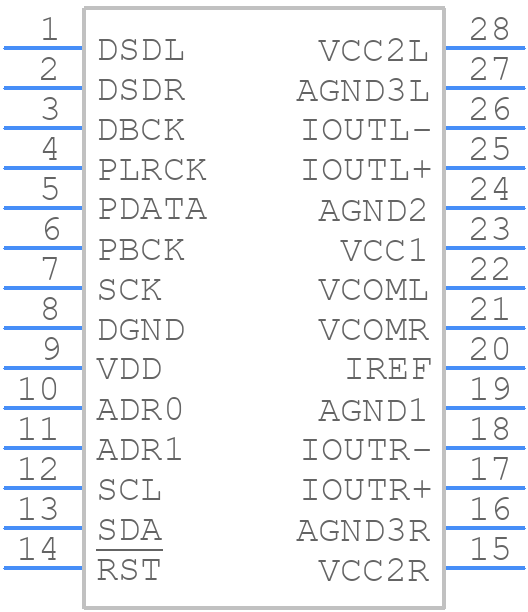

Use the download button to access the DSD1794ADB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DSD17,
or try a keyword search, such as Digital to Analog Converters
