DTA114YM-TP - MCC

Description: Pre-Biased Bipolar Transistor (BJT) PNP - Pre-Biased 50 V 70 mA 250 MHz 100 mW Surface Mount SOT-723

Download DTA114YM-TP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

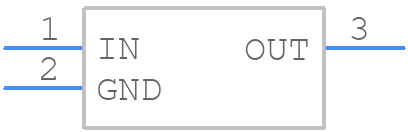

DTA114YM-TP - MCC - PCB symbol
click to zoom
PCB Footprints
DTA114YM-TP - MCC PCB footprint - Other - Other - DTA114YM-TP
click to zoom
3D Models
DTA114YM-TP - MCC - 3D model - Other - DTA114YM-TP
click to zoom

DTA114YM-TP Details

  • Manufacturer Part Number:

    DTA114YM-TP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Micro Commercial Components

  • YTEOL:

    6

  • JESD-609 Code:

    e3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    10

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DTA114YM-TP Overview

Use the download button to access the DTA114YM-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DTA11, or try a keyword search, such as Small Signal Bipolar Transistors
