ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane or a dedicated heat sink.
The DTA143ZUAFRAT106 requires a stable voltage supply and proper biasing to operate within specifications. Ensure the input voltage is within the recommended range (1.65V to 3.6V), and the output is properly terminated with a load resistor. Additionally, decouple the power supply with a 10uF capacitor to reduce noise and ensure stable operation.
The DTA143ZUAFRAT106 is rated for operation from -40°C to 125°C. However, it's essential to consider the derating curves and thermal management to ensure reliable operation within the specified temperature range.
The DTA143ZUAFRAT106 has built-in ESD protection, but it's still essential to follow proper handling and assembly procedures to prevent damage. Use an ESD wrist strap or mat, and ensure the device is stored in an anti-static bag or container.
ROHM recommends a soldering profile with a peak temperature of 260°C, a dwell time of 10-30 seconds, and a cooling rate of 4°C/s or less. Ensure the soldering process is within the specified temperature range to prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DTA143ZUAFRAT106 Overview

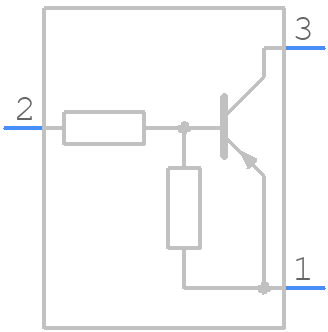

Use the download button to access the DTA143ZUAFRAT106 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DTA14,
or try a keyword search, such as Small Signal Bipolar Transistors
