E-L6258EX - STMicroelectronics

Description: Motor / Motion / Ignition Controllers & Drivers 1.5A Stepper Motor

Download E-L6258EX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

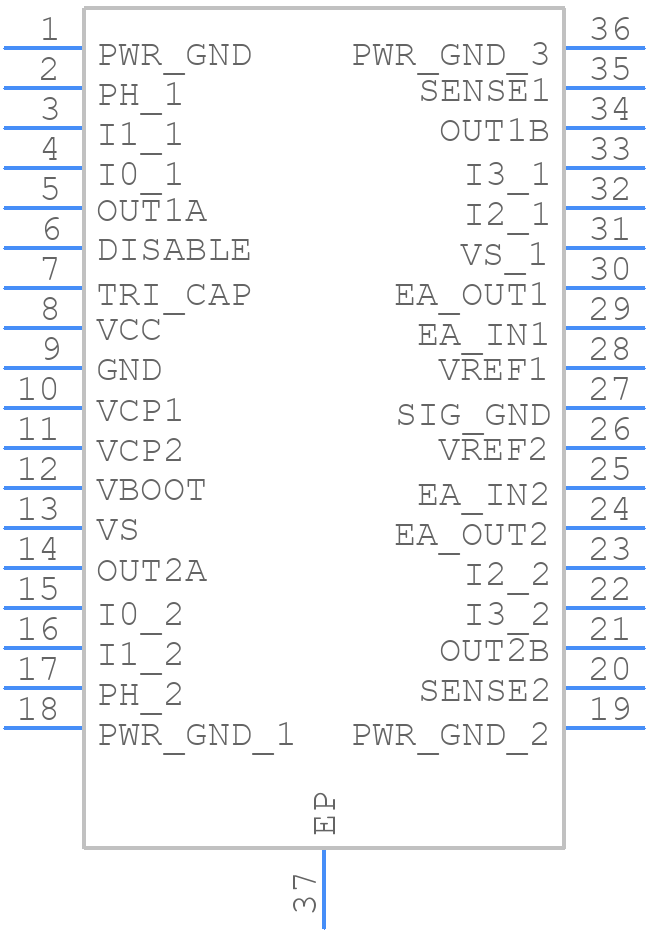

Symbol
E-L6258EX - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
E-L6258EX - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSO36
click to zoom
3D Models
E-L6258EX - STMicroelectronics - 3D model - Small Outline Packages - PowerSO36
click to zoom

E-L6258EX Details

  • Manufacturer Part Number:

    E-L6258EX

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, POWER, SOP-36

  • Pin Count:

    36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    15.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP36,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.6 mm

  • Supply Current-Max (Isup):

    15 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    11 mm

E-L6258EX Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output tracks as short as possible, and use a common mode choke to reduce EMI.
  • Monitor the device's junction temperature, input voltage, and output current to ensure they are within the specified limits. Use thermal management techniques, such as heat sinks or thermal interfaces, to keep the junction temperature below 150°C.
  • Use a pi-filter (C-L-C) or a common mode choke to reduce EMI. Ensure the filter components are placed close to the device and the PCB layout is optimized for minimal radiation.
  • Use an oscilloscope to monitor the input and output waveforms, and check for signs of oscillation or ringing. Verify the PCB layout and component values meet the recommended specifications. Check for thermal issues by monitoring the device's junction temperature.
  • Derate the device's power handling and output current according to the datasheet's derating curves. Ensure the device is properly heatsinked and consider using a thermal interface material to improve heat transfer.
