E-L6258EXTR - STMicroelectronics

Description: Motor / Motion / Ignition Controllers & Drivers Hi-Curr Univ Motor

Download E-L6258EXTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

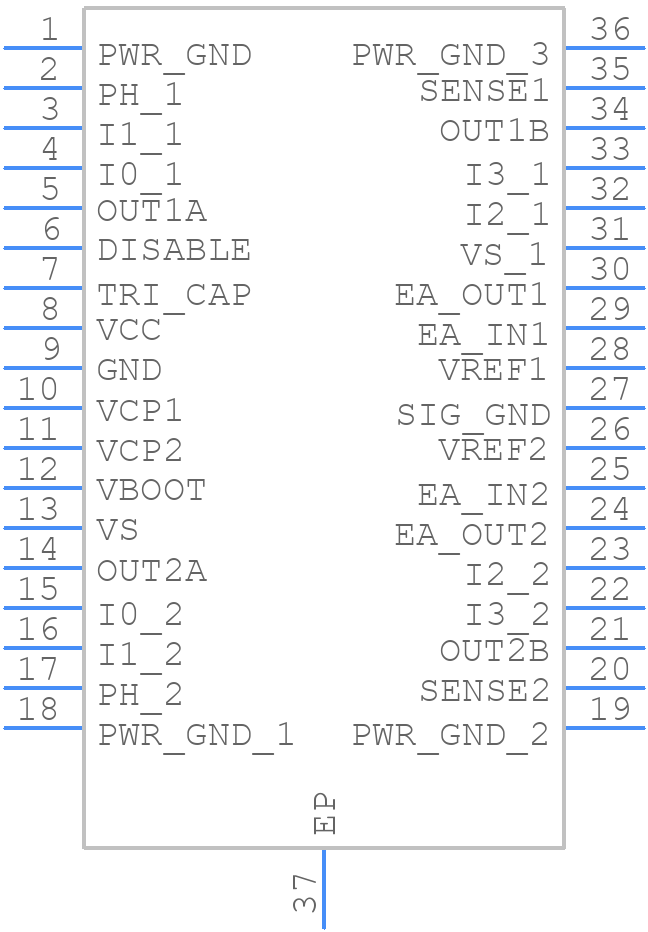

Symbol
E-L6258EXTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
E-L6258EXTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSO36
click to zoom
3D Models
E-L6258EXTR - STMicroelectronics - 3D model - Small Outline Packages - PowerSO36
click to zoom

E-L6258EXTR Details

  • Manufacturer Part Number:

    E-L6258EXTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    POWER, SO-36

  • Pin Count:

    36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    STMicroelectronics

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    15.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP36,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.6 mm

  • Supply Current-Max (Isup):

    15 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    11 mm

E-L6258EXTR Frequently Asked Questions (FAQs)

  • A good PCB layout for the E-L6258EXTR involves keeping the input and output stages separate, using a solid ground plane, and minimizing the length of the input and output traces. It's also recommended to use a common mode filter at the input stage to reduce EMI.
  • To ensure proper biasing, make sure to follow the recommended voltage supply and current limits specified in the datasheet. Additionally, use a voltage regulator to maintain a stable voltage supply, and consider adding a decoupling capacitor to filter out noise.
  • The E-L6258EXTR has a maximum junction temperature of 150°C. To ensure reliable operation, make sure to provide adequate heat sinking, use a thermal interface material, and keep the device away from heat sources. Also, consider using a thermal monitoring system to detect overheating.
  • To troubleshoot issues with the E-L6258EXTR, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Next, verify that the input and output stages are properly biased and that the voltage supply is stable. If issues persist, consider using an oscilloscope to analyze the output waveform and identify any anomalies.
  • Yes, the E-L6258EXTR is susceptible to electromagnetic interference (EMI). To minimize EMI, use a metal shield around the device, keep the input and output traces short, and use a common mode filter at the input stage. Additionally, ensure that the PCB layout meets the recommended guidelines for EMI reduction.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

E-L6258EXTR Overview

Use the download button to access the E-L6258EXTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like E-L62, or try a keyword search, such as Motion Control Electronics
