- Part Number E-TEA3718SDP
- Manufacturer STMicroelectronics
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - 16 Dip package-
- Released Date Sep 2, 2022
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
E-TEA3718SDP Details
-
Manufacturer Part Number:
E-TEA3718SDP
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
DIP
-
Package Description:
POWER, DIP-16
-
Pin Count:
16
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
25 Weeks
-
Manufacturer:
STMicroelectronics
E-TEA3718SDP Frequently Asked Questions (FAQs)
-
STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
-
The E-TEA3718SDP has multiple power modes, including low-power mode, standby mode, and shutdown mode. Configuration is done through the I2C interface using specific register settings, as described in the datasheet and application notes.
-
The E-TEA3718SDP has a high power density, so thermal management is crucial. Ensure good heat dissipation by using a heat sink, thermal interface material, and a well-designed PCB with thermal vias. Follow the thermal design guidelines in the datasheet and application notes.
-
STMicroelectronics provides a troubleshooting guide in the application note AN5323, which covers common issues, error codes, and debugging techniques. Additionally, consult the datasheet and contact STMicroelectronics support for further assistance.
-
The E-TEA3718SDP is sensitive to electrostatic discharge (ESD). Handle the device with ESD-protective equipment, follow proper handling procedures, and ensure the PCB design includes ESD protection components, such as TVS diodes or ESD arrays.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
E-TEA3718SDP Overview

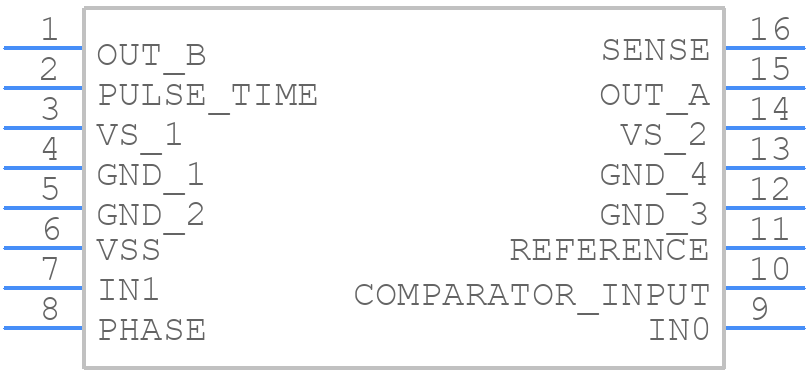

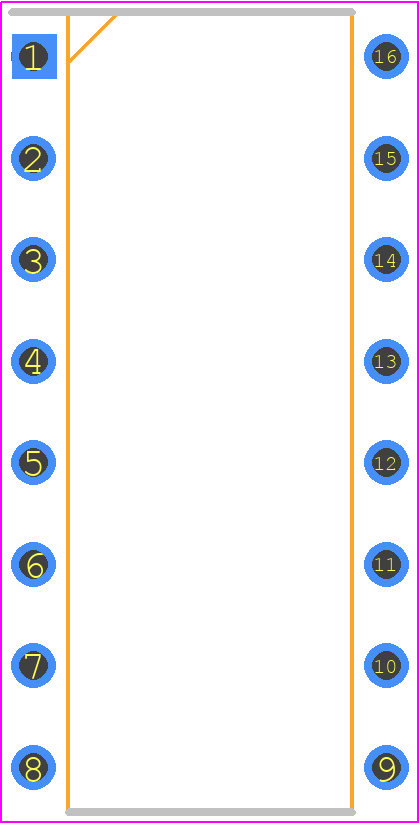

Use the download button to access the E-TEA3718SDP schematic symbol, PCB footprint, and 3D model.
