EB13E2E2H-12.288M TR - ABRACON

Description: Standard Clock Oscillators 12.288MHz 3.3Vdc 25ppm -55°C to +125°C,4mA,15 pF

Download EB13E2E2H-12.288M TR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this EB13E2E2H-12.288M TR model

Email notifications will be applied after download.

Send part feedback

Symbol

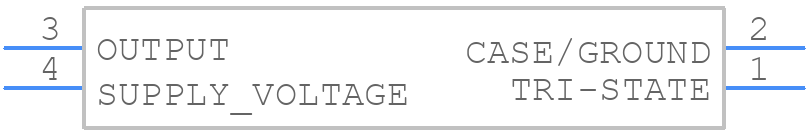

EB13E2E2H-12.288M TR - ABRACON - PCB symbol

PCB Footprints

EB13E2E2H-12.288M TR - ABRACON PCB footprint - Other - Other - 2.5mm x 3.2mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for EB13E2E2H-12.288M TR
Part Number EB13E2E2H-12.288M TR
Manufacturer ABRACON
Pin Count 4
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - 2.5mm x 3.2mm
Released Date Jul 6, 2026
Last Modified Date Jul 6, 2026 2:33 PM UTC
Pinout / Pin List Click Here (Member Only)

EB13E2E2H-12.288M TR Details

Manufacturer Part Number:
EB13E2E2H-12.288M TR
Manufacturer:
Abracon Corporation

Trust Checks

Expert Contribution

System Verified

Community Approved

EB13E2E2H-12.288M TR Overview

Use the download button to access the EB13E2E2H-12.288M TR schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like EB13E, or try a keyword search, such as XO
