EC2832AA2 - Kaga Electronics USA

Description: Bluetooth Modules - 802.15.1 BLE 5.0 (nRF52832) 2Mbps mode, antenna, ARM M4F 64kB RAM, 9.6 x 12.9 x 2.0 mm module , 1.7V ~ 3.6V , -40C ~ +85C

Download EC2832AA2 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this EC2832AA2 model

Email notifications will be applied after download.

Send part feedback

Symbol

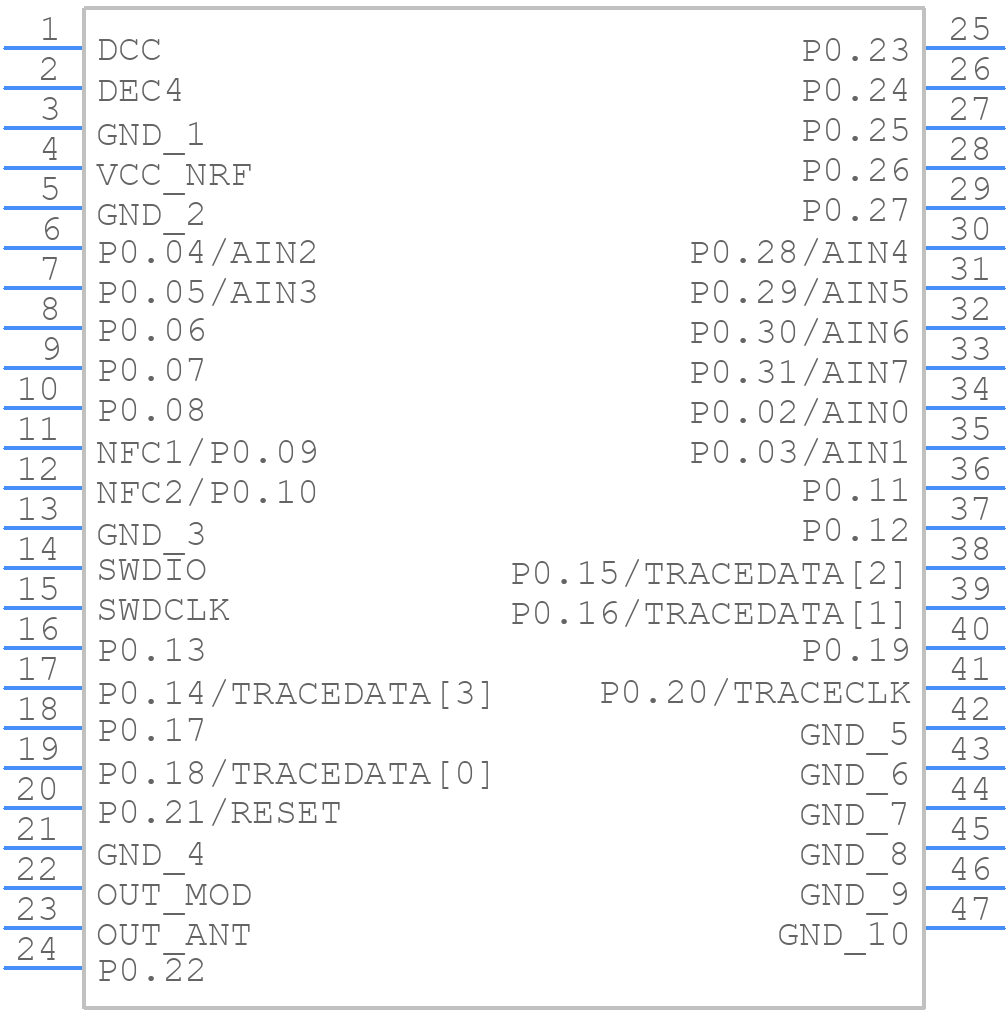

EC2832AA2 - Kaga Electronics USA - PCB symbol

PCB Footprints

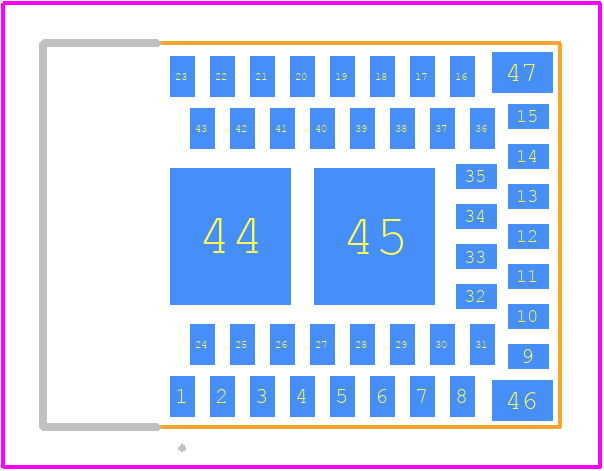

EC2832AA2 - Kaga Electronics USA PCB footprint - Other - Other - 47-pin Land Grid Array

3D Models

EC2832AA2 - Kaga Electronics USA - 3D model - Other - 47-pin Land Grid Array

Datasheet Download Datasheet
Stock & Prices Price & Stock for EC2832AA2
Part Number EC2832AA2
Manufacturer Kaga Electronics USA
Pin Count 47
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - 47-pin Land Grid Array
Released Date Feb 10, 2026
Last Modified Date Feb 10, 2026 9:04 AM UTC
Pinout / Pin List Click Here (Member Only)

EC2832AA2 Details

Manufacturer Part Number:
EC2832AA2
Manufacturer:
KAGA FEI America Inc

Trust Checks

Community Provided

System Verified

Community Approved

EC2832AA2 Overview

Use the download button to access the EC2832AA2 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like EC283, or try a keyword search, such as XO
