ECS-327SMO-TR footprint, schematic symbol and 3D model by ECS

Symbol

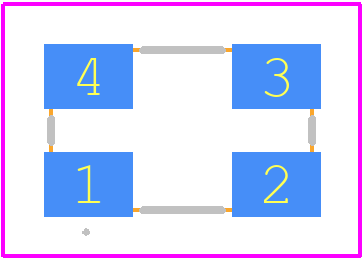

PCB Footprints

3D Models

ECS-327SMO-TR Details

Manufacturer Part Number:
ECS-327SMO-TR
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, CERAMIC, SMD, 4 PIN
ECCN Code:
EAR99
Factory Lead Time:
24 Weeks
Manufacturer:
ECS International Inc
YTEOL:
5
Additional Feature:
ENABLE/DISABLE FUNCTION; SYMMETRY OPTION 45/55 ALSO AVAILABLE; TAPE AND REEL
Fall Time-Max:
200 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
30%
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
4
Operating Frequency-Nom:
0.032768 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
CMOS
Output Load:
15 pF
Package Body Material:
CERAMIC
Package Equivalence Code:
DILCC4,.16,187
Packing Method:
TR
Physical Dimension:
6.5mm x 4.0mm x 2.0mm
Qualification Status:
Not Qualified
Rise Time-Max:
200 ns
Supply Current-Max:
0.015 mA
Supply Voltage-Max:
6 V
Supply Voltage-Min:
1.5 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Symmetry-Max:
55/45 %
Terminal Finish:
Gold (Au)

The recommended storage condition for ECS-327SMO-TR is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -20°C to 40°C (-4°F to 104°F) and humidity below 80%.
Yes, ECS-327SMO-TR is designed to withstand high-vibration environments, with a vibration resistance of up to 10G (10-2000Hz). However, it's recommended to consult with ECS International Inc. for specific vibration requirements.
Yes, ECS-327SMO-TR is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C (500°F) for a maximum of 20 seconds.
The typical power-on time for ECS-327SMO-TR is around 10ms, but this may vary depending on the specific application and operating conditions.
