EDC104Z5R5V - Cornell Dubilier

Description: Cap Supercap 0.1F 5.5V -20% to 80% (11.5 X 5mm) Radial Stacked Coin 5mm 75 Ohm 1000h 70°C

Download EDC104Z5R5V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EDC104Z5R5V - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

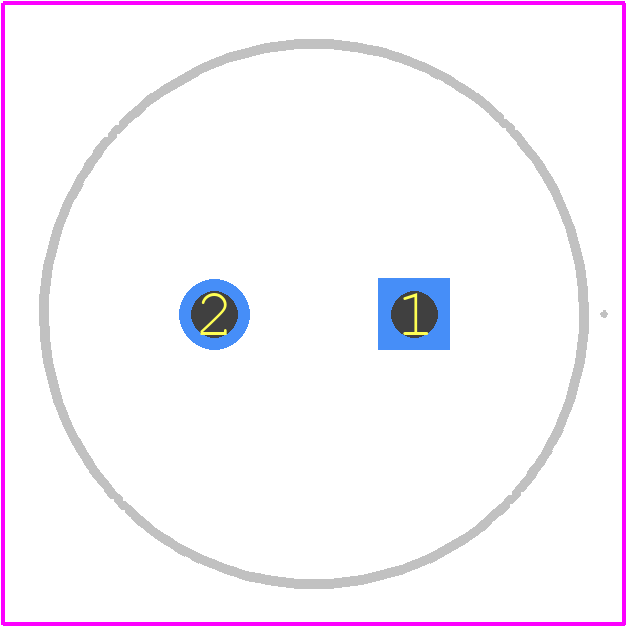

EDC104Z5R5V - Cornell Dubilier PCB footprint - Other - Other - EDC104Z5R5V-2
click to zoom
3D Models
EDC104Z5R5V - Cornell Dubilier - 3D model - Other - EDC104Z5R5V-2
click to zoom

EDC104Z5R5V Details

  • Manufacturer Part Number:

    EDC104Z5R5V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.29.00.40

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    7

  • Capacitance:

    100000 µF

  • Capacitor Type:

    ELECTRIC DOUBLE LAYER CAPACITOR

  • Diameter:

    11.5 mm

  • Dielectric Material:

    ACTIVATED CARBON

  • Length:

    5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Radial

  • Positive Tolerance:

    80%

  • Rated (DC) Voltage (URdc):

    5.5 V

  • Surface Mount:

    NO

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    FLAT

EDC104Z5R5V Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 5 seconds. It's essential to follow the manufacturer's soldering guidelines to prevent damage to the component.
  • While the EDC104Z5R5V is a reliable component, it's not specifically designed for high-vibration environments. However, Cornell Dubilier Electronics Inc recommends following the standard vibration testing procedures outlined in IEC 60068-2-6 to ensure the component's reliability in such environments.
  • The EDC104Z5R5V is designed to withstand high-temperature storage up to 125°C (257°F) for a maximum of 1000 hours. However, it's essential to follow the manufacturer's storage guidelines to prevent degradation of the component's electrical characteristics.
  • Yes, the EDC104Z5R5V is compatible with lead-free soldering processes. Cornell Dubilier Electronics Inc recommends using a lead-free solder alloy with a melting point between 217°C (423°F) and 240°C (464°F) to ensure reliable solder joints.
  • The recommended PCB layout and land pattern for EDC104Z5R5V can be found in the manufacturer's application notes or by contacting their technical support team. It's essential to follow the recommended layout and land pattern to ensure reliable operation and prevent thermal issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EDC104Z5R5V Overview

Use the download button to access the EDC104Z5R5V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EDC10, or try a keyword search, such as Electric Double Layer Capacitors
