The recommended soldering temperature is 260°C (500°F) with a maximum dwell time of 10 seconds. It's essential to follow the soldering profile recommended by Cornell Dubilier Electronics Inc to ensure the capacitor's reliability and performance.
Yes, the EDC334Z5R5C is designed to withstand high-vibration environments. However, it's crucial to ensure that the capacitor is properly mounted and secured to prevent mechanical stress, which can affect its performance and lifespan.
The EDC334Z5R5C is designed to operate up to 80,000 feet (24,384 meters) above sea level. However, it's essential to consult with Cornell Dubilier Electronics Inc or a qualified engineer to ensure that the capacitor meets the specific requirements of your high-altitude application.
The EDC334Z5R5C has a moisture sensitivity level (MSL) of 2, which means it can withstand normal humidity levels. However, it's not recommended for use in extremely humid or moist environments without proper protection, such as conformal coating or hermetic sealing.
The shelf life of EDC334Z5R5C is typically 2 years from the date of manufacture when stored in a dry, cool environment. It's essential to follow proper storage and handling procedures to ensure the capacitor's performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EDC334Z5R5C Overview

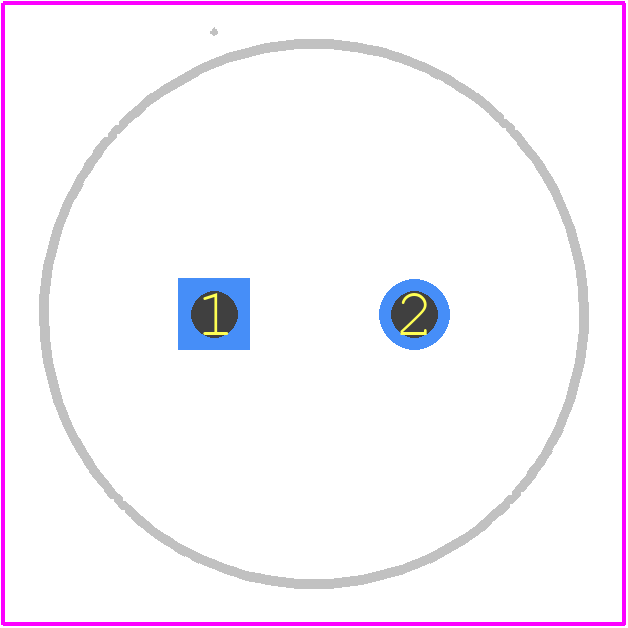

Use the download button to access the EDC334Z5R5C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EDC33,
or try a keyword search, such as Electric Double Layer Capacitors
