The maximum operating temperature range for EDF8132A1MC-GD-F-R is -40°C to 85°C, as specified in the datasheet. However, it's recommended to operate within -20°C to 70°C for optimal performance and reliability.
The power-up and power-down sequences for EDF8132A1MC-GD-F-R should be handled according to the datasheet's recommended power-up and power-down sequences. This typically involves ramping up the VCC power supply to the device before applying clock and input signals, and reversing this sequence during power-down.
The recommended PCB layout and routing for EDF8132A1MC-GD-F-R involves following good high-speed design practices, such as using short, direct traces for clock and data signals, and avoiding vias and stubs. It's also recommended to use a solid ground plane and to decouple the power supply with capacitors.
To troubleshoot issues with EDF8132A1MC-GD-F-R, start by verifying the power supply and clock signals, then check the data signals and protocol compliance. Use oscilloscopes and logic analyzers to capture and analyze the signals, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
Yes, EDF8132A1MC-GD-F-R is a high-speed device that can be susceptible to electromagnetic interference (EMI) and radio-frequency interference (RFI). To minimize these effects, use shielding, filtering, and grounding techniques, and follow good PCB layout and routing practices.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EDF8132A1MC-GD-F-R Overview

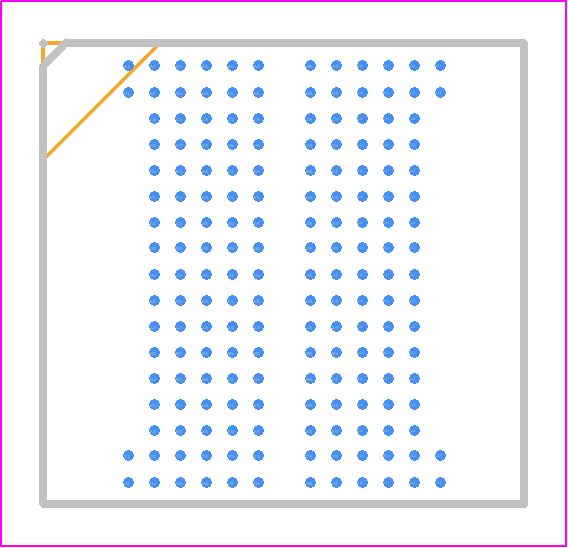

Use the download button to access the EDF8132A1MC-GD-F-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EDF81,
or try a keyword search, such as DRAMs
