EDS684Z5R5C - Cornell Dubilier

Description: Supercapacitors / Ultracapacitors 0.68F 5.5V 85C

Download EDS684Z5R5C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EDS684Z5R5C - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

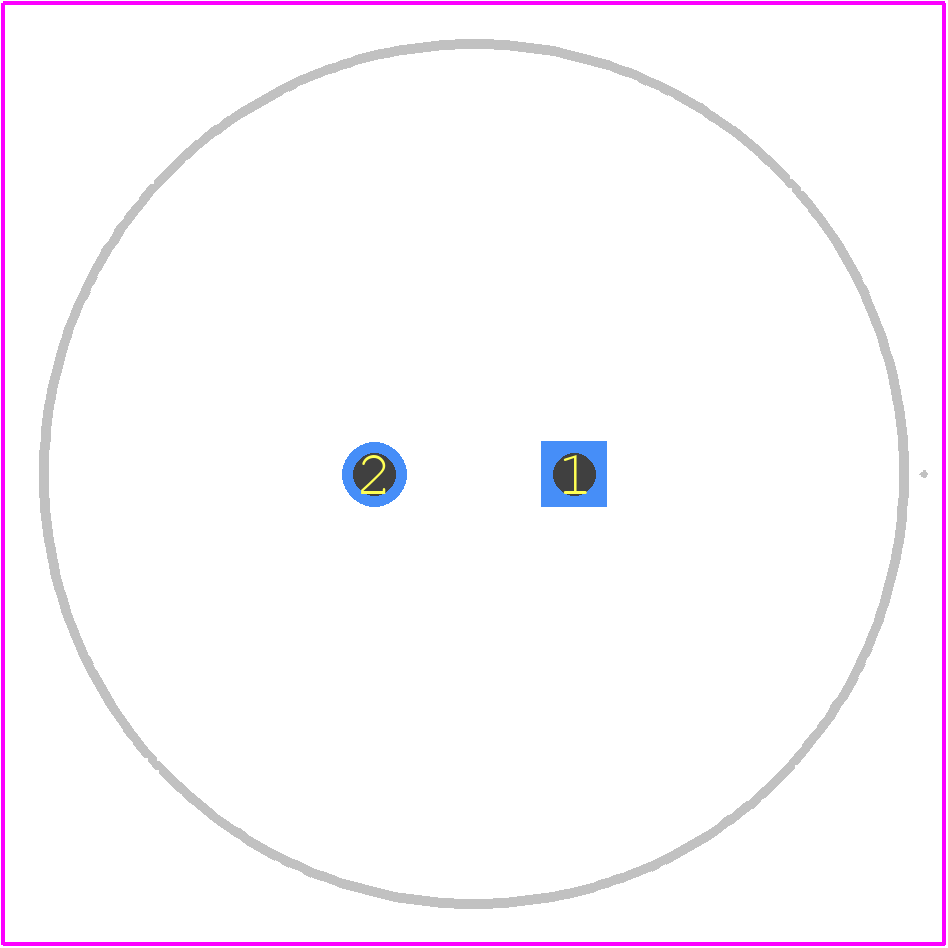

EDS684Z5R5C - Cornell Dubilier PCB footprint - Other - Other - EDS684Z5R5C-2
click to zoom
3D Models
EDS684Z5R5C - Cornell Dubilier - 3D model - Other - EDS684Z5R5C-2
click to zoom

EDS684Z5R5C Details

  • Manufacturer Part Number:

    EDS684Z5R5C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.29.00.40

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    7

  • Capacitance:

    680000 µF

  • Capacitor Type:

    ELECTRIC DOUBLE LAYER CAPACITOR

  • Diameter:

    21.5 mm

  • Dielectric Material:

    ACTIVATED CARBON

  • Length:

    9.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Radial

  • Positive Tolerance:

    80%

  • Rated (DC) Voltage (URdc):

    5.5 V

  • Surface Mount:

    NO

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    FLAT

EDS684Z5R5C Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum dwell time of 10 seconds. It's essential to follow the soldering profile recommended by Cornell Dubilier to ensure the capacitor's reliability and performance.
  • Yes, the EDS684Z5R5C is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6, which ensures its performance and reliability in demanding applications.
  • The EDS684Z5R5C is designed to handle high-frequency noise and ripple current. Its low equivalent series resistance (ESR) and high-frequency impedance characteristics make it suitable for filtering and decoupling applications in high-frequency circuits.
  • Yes, the EDS684Z5R5C capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly and sustainable designs.
  • The shelf life of the EDS684Z5R5C capacitor is 2 years from the date of manufacture when stored in its original packaging and under recommended storage conditions (temperature: 20°C to 30°C, humidity: 60% to 90%).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EDS684Z5R5C Overview

Use the download button to access the EDS684Z5R5C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EDS68, or try a keyword search, such as Electric Double Layer Capacitors
